Hobbywing Xerun Axe550L R2-3300kV FOC Combo for Rock Crawlers

Product information "Hobbywing Xerun Axe550L R2-3300kV FOC Combo for Rock Crawler"
Intelligent torque and speed control for precise driving maneuvers with your 1/10 rock crawler!

The XeRun AX "R2" brushless controller, in conjunction with the associated AX "R2" motor, automatically regulates torque and speed depending on the load requirement. The technology used is also called FOC (Field-Oriented Control) and is responsible for this really great control feeling.

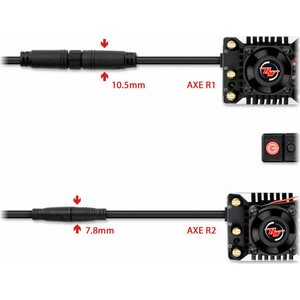

The XeRun AX "R2" 550 motor with 5mm shaft and 3300KV also contributes to this. Built in the staggered pole rotor design patented by Hobbywing, the 4-pole motor has hardly any cogging torque and runs smoothly under all conditions. With the professional handbrake function, your vehicle is now 100% immobile, even on the steepest slopes. There is also the waterproof sensor port for special protection, which now has an even more functional design than its predecessor.

The controller also offers extensive setting options for professionals. Connected via Bluetooth and APP, relevant data can be read out, settings changed or firmware updates carried out, everything is simple and easy.

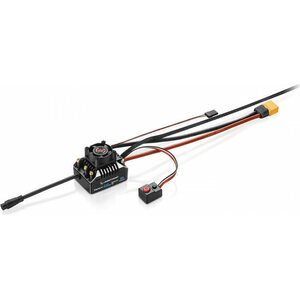

Technical data controller:

Type: Brushless FOC
Current duration / short: 80A / 480A
Cell count: 2s-3s LiPo, 6-9 cells NiMH
Motor Limits: only XeRun-AX "R2" motor series
BEC: 6V / 7.4V with 6A
Programming: via Bluetooth and APP "HW LINK"
Waterproof: Yes
Dimensions: 47.4 x 36.2 x 26.5mm
Weight: 108g
Commitment: 1/10 rock crawler

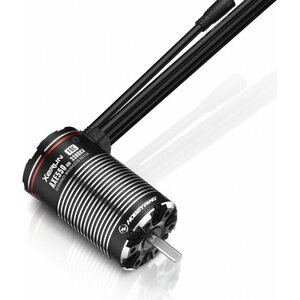

Technical data engine:

Type: Sensored Brushless FOC
Pole: 4th
Rotational speed: 3300KV
Number of LiPo cells: 2s-3s
No-load current: 4.7A
Outer diameter: 36.0mm
Length: 63.8mm
Shaft diameter: 5.0mm
Wavelength: 16mm
Waterproof: Yes
Weight: 274g
Commitment: 1/10 rock crawler

Scope of delivery:

1x controller
1x motor
1x manual (English)
