1/16 Summit: Smaller Size, Big Attitude!
ERC Recommendations:
Recommended for beginners
Suitable for All terrain
Waterproof
Top speed about 30km / h
Required for operation: AC charger or Power supply and batteries for controller

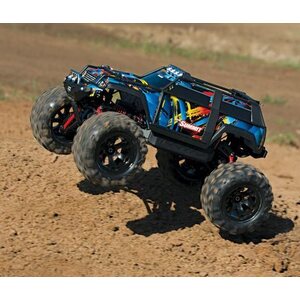

Enjoy Big Summit Fun in a More Convenient 1/16 Scale Size! Leave it to Traxxas to stuff a 1/10 scale motor into a 1/16 scale truck! Summit’s mighty Titan® 12T 550 motor delivers nearly limitless torque for tire-scorching acceleration and all-terrain capability. With massive suspension travel, extreme Titan power, and 4-wheel drive traction, Summit tackles impossible terrain. Traxxas engineers combined all the big Summit's go-anywhere versatility with waterproof electronics to make even your wildest adventures possible. Summit’s bright LED lights blaze a trail, making night runs more exciting than ever. The 1/16 Summit's just-right size lets you enjoy hours of off-road fun anytime, anywhere!
QUICK FEATURES ON 1/16 SUMMIT (#72054-1)

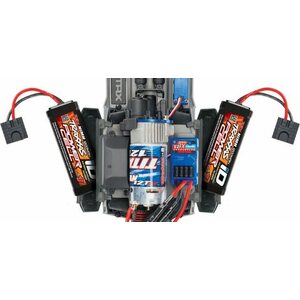

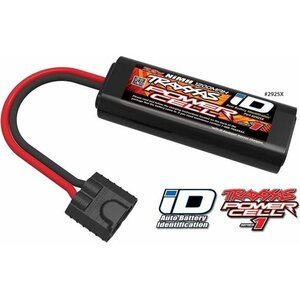

6-cell NiMH Power Cell Battery with iD
Ready-To-Race® with Included Power Cell™ NiMH Battery and DC Charger
Powerful Titan® 12T 550 Motor—Largest in Class
TQ™ 2.4GHz Transmitter and Receiver
Full-Time 4WD

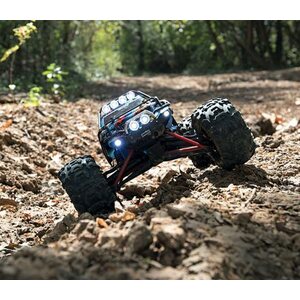

Bright LED Lights Front and Rear to Illuminate the Trail
Waterproof Electronics for all-Weather Adventures
Torque-Control™ Adjustable Slipper Clutch
Sealed Differentials
Realistic all-Terrain Tires with Foam Inserts

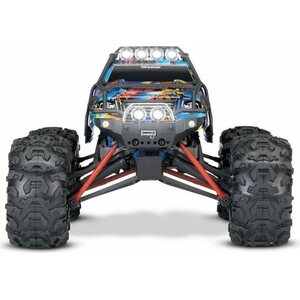

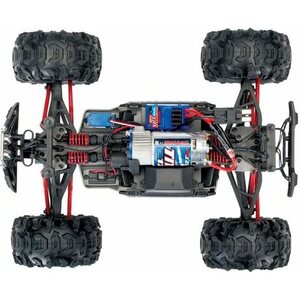

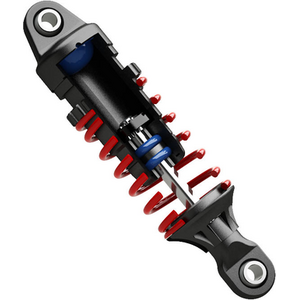

Proven Traxxas Innovation Traxxas packed all the capability, durability, and excitement of our award-winning models into 1/16 scale for fast, affordable RC fun. The Summit’s rocker-actuated suspension is adapted expertly to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics integrate fully into a radically innovative monocoque chassis design. Intricately molded as a single piece, the chassis balances strength and weight with function and performance to surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.
100% Ready-To-Race® The 1/16 Summit comes fully assembled with TQ 2.4GHz radio system, Titan 12-T power, pre-painted body, pre-glued tires, detailed instructions and a Traxxas NiMH battery and DC charger. Only Traxxas could pack this level of performance, innovation, and value into a Ready-To-Race package with the quality you expect. Traxxas backs the Summit and all of our products with top-notch support that is second to none. A staff of skilled representatives is on-hand to answer your questions via phone, website, or e-mail. Unmatched parts support allows the Summit to be serviced with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your RC experience is easy and fun (and fast!).
1/16 SUMMIT (#72054-1) SPECS
Length: 320 mm
Front Track: 265 mm
Rear Track: 270 mm
Weight: 1.31 kg
Height (Overall): 190 mm

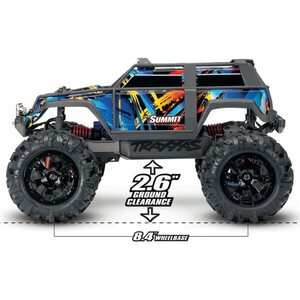

Wheelbase: 214 mm
Wheel Diameter: 2.2" (56mm)
Shock Length (Front / Rear): 48mm / 48mm
Front/Rear Tires (Glued): Canyon AT
Front/Rear Wheels: Geode™
Electronic Speed Control: Waterproof XL-2.5 ESC
Motor (Electric): Titan® 12T 550

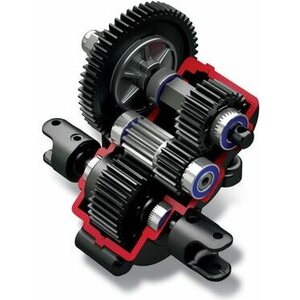

Transmission: Heavy-Duty Single Speed
Gear Ratio (Internal): 5.04:1, (Reversed Input: 9.72:1)
Overall Drive Ratio: 15.75:1 (stock)

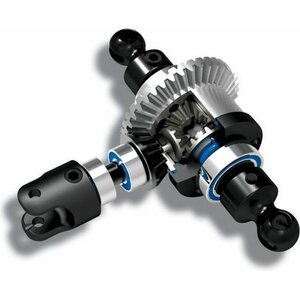

Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48P
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank

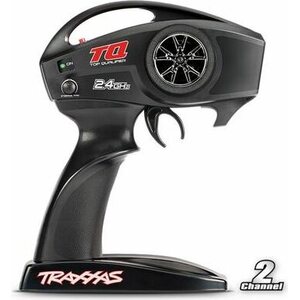

Radio System: Traxxas TQ™ 2.4GHz (2-Channel)

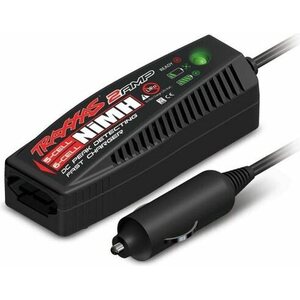

Included Charger: 2A DC Charger
Included Batteries: 6-cell NiMH with iD Connector
Required Batteries: 4 "AA" (Transmitter)
XL-2.5 WATERPROOF ESC SPECIFICATIONS
Input Voltage: 4-7 Cells NiMH, 2 Cells (2S) LiPo
Case Size: W26.5 x D46.5 x H22 mm
Weight: 33 gr
Motor Limit: 10-Turns*
On Resistance (@Trans): 0.008 Ohms
Reverse Delay: None
BEC Voltage: 6.0V DC
Power Wire: 16 Gauge / 40 mm
Input Harness Wire: 26 Gauge / 130 mm
Motor Wires: 26 Gauge / 130 mm
Transistor Type: MOSFET
Low Voltage Detection: 2-Stage Indicators, Switchable (On and Off)
PWM Frequency: 2300 Hz
Thermal Protection: Thermal Shutdown
Single-Button Setup: Yes, Traxxas EZ-Set®
Profile Selection:
Sport Mode: 100% Fwd, 100% Brakes, 100% Rev
Race Mode: 100% Fwd, 100% Brakes, no Rev
Training Mode:** 50% Fwd, 100% Brakes, 50% Rev
Separately Required:
AC Charger or Power supply for charging at home
4 x AA Batteries for the transmitter
