Team Associated B6.2D Team Kit

Champions by design. 1:10 scale 2WD off road has been Team Associated's signature class since the release of the RC10 in 1984. The Team Associated RC10 buggy series has won 13 of the 18 I.F.M.A.R. World Championships contested since the racing class began. In fact, Team Associated has won more 2WD I.F.M.A.R World Championships than all other manufacturers combined!

The engineering continues. The B6 platform introduced the use of two separate chassis configurations -- the B6.2 continues this theme. The B6.2 will be the buggy of choice for high grip carpet or turf track surfaces with its Laydown transmission assembly and anti-roll bars for optimal mass balance. The B6.2D includes both Layback and Laydown transmission assemblies to fine tune mass balance to track conditions; add to that the addition of +1 Ackermann plates and gull wing suspension arms to tune the steering for razor sharp feel and control.

Both cars share many great features, such as an easy-access differential, outer rear hinge pins captured with bolt head and locknut for increased durability, new symmetric rear arms that can be flipped to allow an in-between rear shock mounting position, and a new slipper assembly. The setups and tuning parts remain interchangeable between the two configurations. Both versions come with the speed, durability and lineage expected of a true champion. Choose the configuration that suits your track and conquer the competition!

Due to ongoing R&D, photos may not match final kit. Vehicle shown on these pages equipped with items NOT included in kit: Reedy motor, battery, ESC, servo, receiver, wheels, tires, fan, and pinion gear. Assembly and painting required.
Features
New symmetric 73mm rear arms with improved geometry and stiffness can be flipped to allow an in-between rear shock mounting position

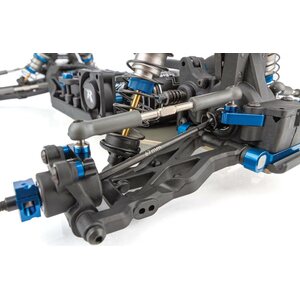

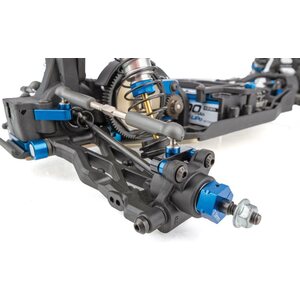

New rear hub assembly with modular vertical ball stud camber link mount and axle height adjustment
Bolt-on +1 steering block arms for improved steering response

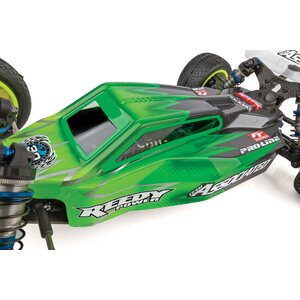

New body design with lower center of mass
Clear body and wing included
New front wing mount and front wing included
Outer rear hinge pins captured with bolt head and lock nut for increased durability
Updated left side rail with motor fan mount (fan not included)
67mm CVA bones for reduced bone plunge and minimized friction at drive pin
13g aluminum chassis weight included for improved mass balance and easy electronics removal
7mm aluminum clamping wheel hexes
Ball differential included

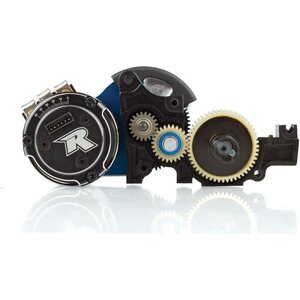

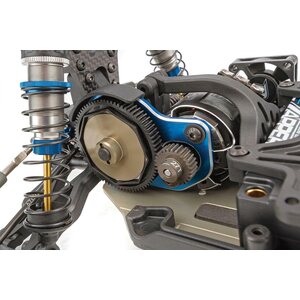

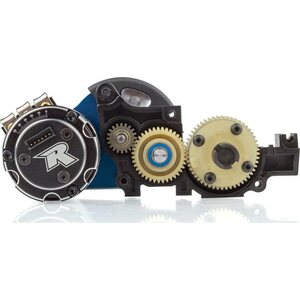

Both Layback and Laydown Stealth(TM) transmission assemblies included to fine tune mass balance to track conditions
Differential height adjustment with 0, 1, 2, and 3mm inserts included
7075-T6 aluminum arm mounts with optimized roll center positions and inserts for tuning anti-squat and toe adjustments

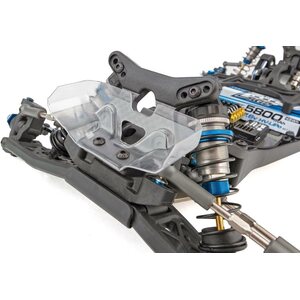

Heavy-duty V2 routed graphite front shock tower with tower guard

Vehicle Specifications
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 387mm (15.24in)
Width: varies
Wheelbase: varies
Weight: 758g (1.67lbs)
Internal
Gear Ratio: 2.60:1
Drive: 2WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.

Required to Complete
1:10 scale electric motor
Electronic speed control
7.4V, 7.6V LiPo, 6.6V LiFe with "shorty" battery dimensions (Reedy batteries #27335, 27336, 27337, 27338)
Battery charger (#27200)
2-channel surface transmitter
2-channel receiver
Steering servo (#27113, 27114)
Lexan(TM)-specific spray paint for body
1:10 scale off-road wheels and tires
Pinion gear
Other helpful items: Silicone shock fluid, Silicone diff fluid, FT body scissors (#1737), FT body reamer (#1499), FT hex/nut driver set (#1519), CA tire adhesive (#1597), Hobby knife, Needle nose pliers, Wire cutters, Soldering iron, Calipers or a precision ruler
