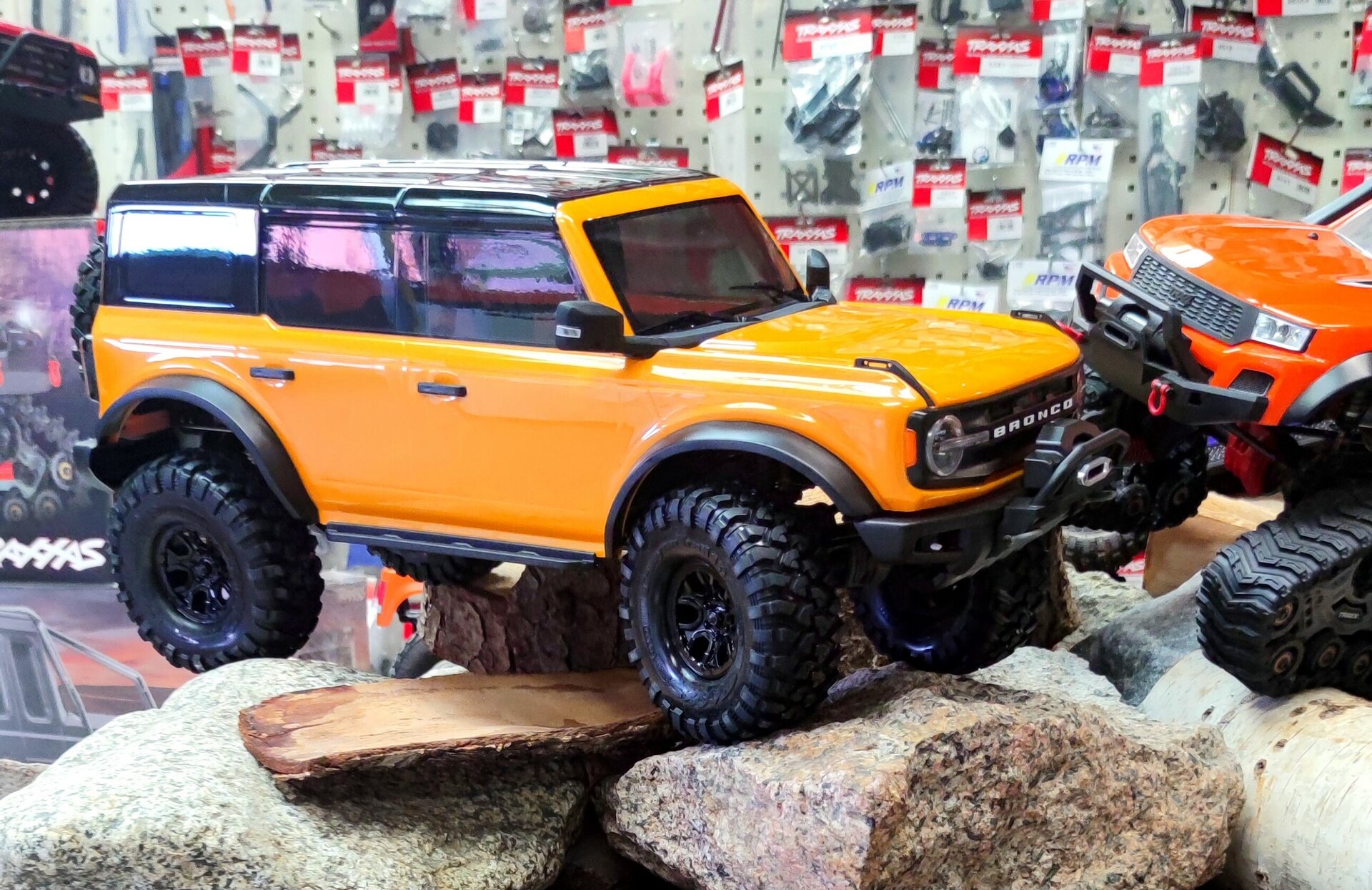

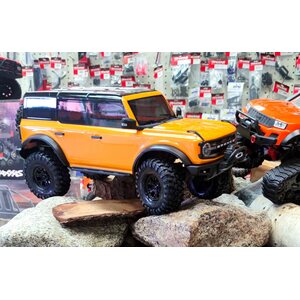

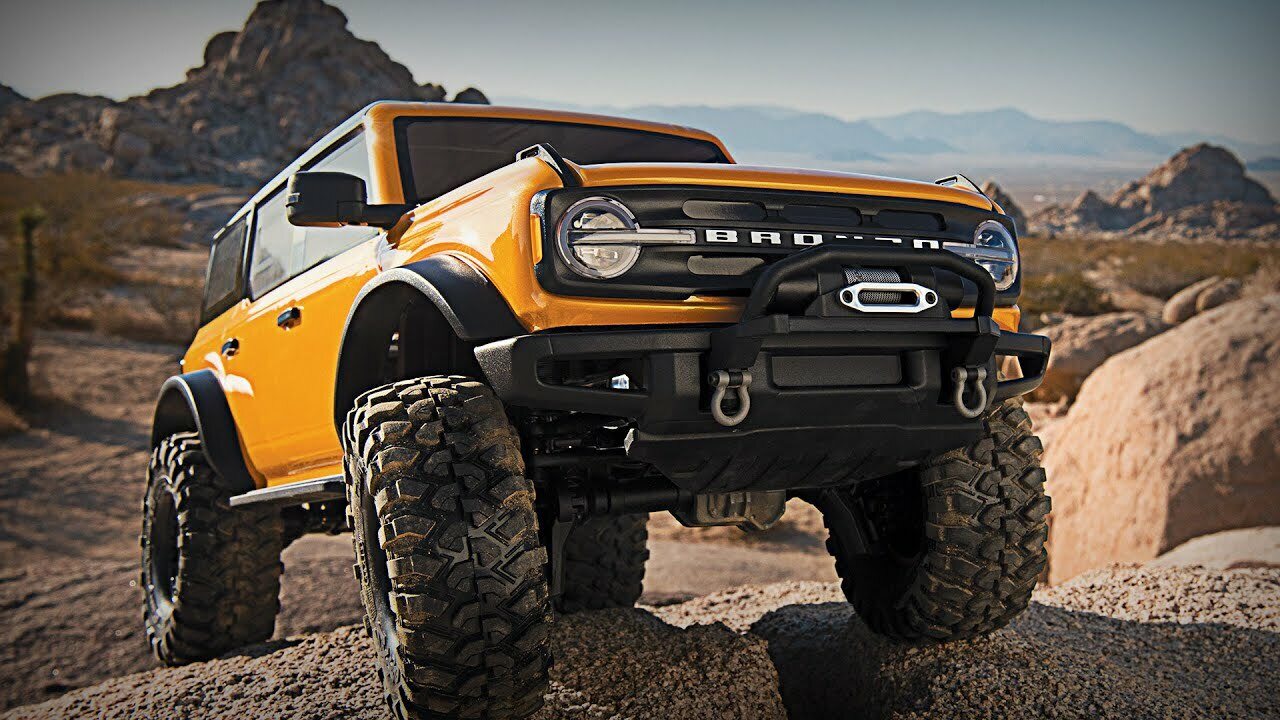

Traxxas TRX-4 Ford Bronco 2021 Crawler RTR

The new TRX-4 Bronco 2021 from Traxxas is here.


AN OFF-ROAD LEGEND RETURNS
The legend is back. After 25 years, the Bronco has returned as Ford’s top-performing 4X4 and America’s most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.


Vehicle Specs:
Length (overall): 584mm
Length (chassis): 549mm
Front Track: 249mm
Rear Track: 249mm
Ground Clearance: 80mm
Weight: 2.91kg
Height: 239mm
Wheelbase: 324mm
Front Shock Length: 90mm
Rear Shock Length: 90mm
Front Wheels: 1.9 x 1.02” (49 x 26mm)
Rear Wheels: 1.9 x 1.02” (49 x 26mm)
Front Tires: 118 x 48mm
Rear Tires: 118 x 48mm
Approach Angle: 52°
Departure Angle: 49°
Breakover Angle: 58°
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: L158.75 x W47 x H23/26mm

Motor Specs:
Type: High-torque brushed motor
Size: 550
Weight: 390g
Length: 78mm (overall), 57mm (can)
Diameter: 38.9mm
Turns: 21T reverse rotation
Voltage: 16.8V

ESC Specs:
Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
Motor Limit: 21-turns (550 size)
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:* 50% FWD, 100% brakes, 50% REV
Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
* Patented

What’s In The Box:
TRX-4, Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan™ 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools

What You’ll Need:
Batteries: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger: Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries: Four AA batteries for the transmitter.
