Absima 1:10 EP Buggy "AB3.4KIT" 4WD KIT

Fast and powerful, the new Hotshot 3.4 series is equipped with a powerful brushed electric motor, with heat sink, and waterproof electronic speed controller (ESC). Ready to run out of the box (EU & UK version including plug charger and battery). Shaft driven 4WD provides you with the necessary traction to maneuver the toughest obstacles and the forward/reverse ESC is beneficial in navigating tight spots. Lightweight plastic chassis, four oil filled adjustable coil over shocks, and independent suspension offer rock solid performance. Fear not! A 2.4GHz radio system and waterproof electronics ensure control, for those who dare to unleash the power.





HIGHLIGHTS

KIT Version for self assembling
Racing Body Design
Including 2 Versions of Motor Transmissions for Brushed & Brushless (Steel Version)
NOTE: KIT Version don`t includes any electronic components!


PRODUCT FEATURES

Ball bearing transmission
Oil filled adjustable shocks
Gear differential front/rear
Aluminum motor mount
Complete covered transmission
Adjustable turnbuckles & wishbones
Motor heat sink
Aero disc racing wheels
Full printed body
Sticker sheet for a unique design
Performance hop ups available!


TECH SPECS

Drive System: 4 Wheel Drive
Wheelbase: 270mm
Ground Clearance: 35mm
Measure (L/W/H): 380x255x155 mm
Weight: 1410g
Tire width: 33 mm front / 42 mm rear
Tire Ø ± 88 mm
Shock spring force: medium / Length: 85mm f/r
Differential oil viscosity: 3.000 front /1.000 rear
Shock oil viscosity: 400 f/r
Motor transmission: Pinion 23T / Gear 64T
Pinion module: 0.6


SCOPE OF DELIVERY

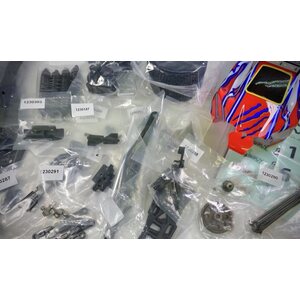

Buggy "AB3.4" KIT version
Manual
Sticker Sheet


REQUIRED ACCESSORIES

Radio System
Steering Servo + Servo Horn
Electric Speed Controller (brushed or brushless)
540size Electric Motor (brushed or brushless)
Battery - Racing Pack NiMH or LiPo (up to 30C)
Charger
4x AA Mignon Batteries for Radio
