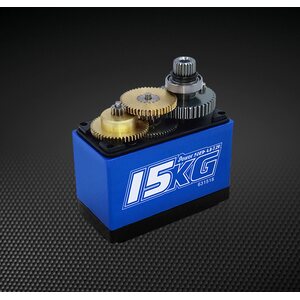

Power HD LW-15MG DIGITAL SERVO (WATERPROOF) 15.0Kg / 0.11S

Availability
Approximately 3 - 15 day(s) from the order. The reliability of the estimation is good.

Detailed availability
Notify me when this product is in stock again

Product description

Torque(4.8V): 9.0 kg-cm (125.0 oz/in)
Torque(6.0V): 12.5 kg-cm (173.6 oz/in)
Torque(7.2V): 15.0 kg-cm (208.3 oz/in)
Speed: 0.15 sec (4.8V) │ 0.13 sec (6.0V)│ 0.11 sec (7.2V)
Operating Voltage：4.8 ~ 7.2 DC Volts
Weight: 62 g (2.19 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55 in)

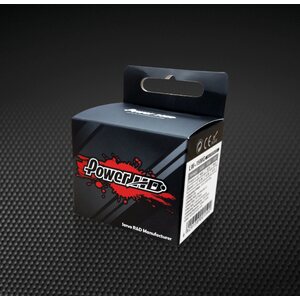

The approximate size of the packed product or the sales package is 80 x 100 x 60 mm.

Servo size
Normal

Servo speed
0.11s

Servo spline
25T

Servo torque
15kg

Servo use
1/10 Hobby

Weight
0,08 kg(Includes the weight of the sales package if present)

Country of origin
