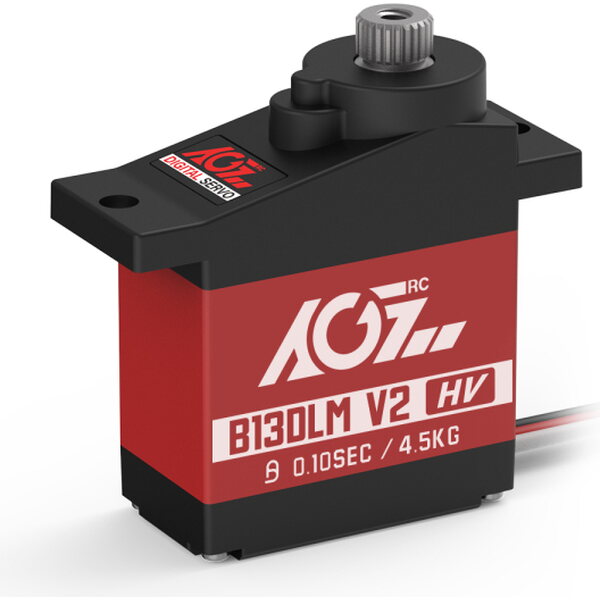

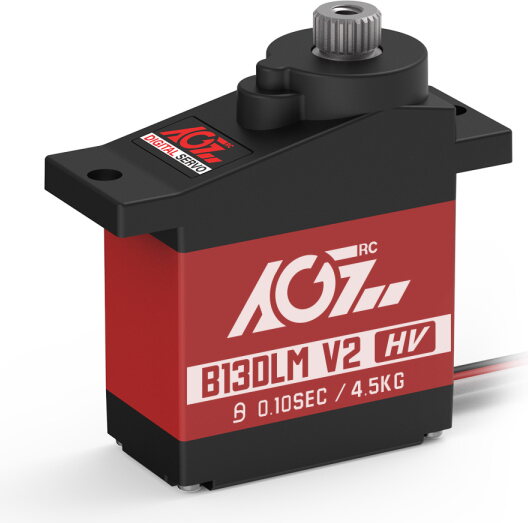

AGF B13DLM V2 4.5KG Micro HV Digital Servo

AGFRC B13DLM V2 4.5KG 0.10sec Micro HV Programmable Digital Servo with Titanium-Copper Gears
➤The AGFRC B13DLM V2 is a compact HV digital servo designed for micro RC models and space-constrained installations. It delivers up to 4.5 kg-cm of stall torque and an operating speed of 0.10 sec/60° at 8.4 V, with a wide 4.8-8.4 V input range.
➤Featuring a DC motor, IC drive, potentiometer angle sensor, titanium-copper gears, 2BB bearings and an aluminum-plus-plastic case, the B13DLM V2 combines practical torque with a lightweight 16 g design. Its programmable PWM control, compact 22.8 x 12 x 29.4 mm body and 180° +/- 10° operating travel support versatile model applications.

Main Features
●Maximum stall torque of 4.5 kg-cm at 8.4 V
●Operating speed up to 0.10 sec/60° at 8.4 V
●Compact body measuring 22.8 x 12 x 29.4 mm
●Lightweight 16 g design for space-sensitive installations
●DC motor with IC drive for dependable operation
●Titanium-copper gears with 2BB metal bearing support
●Programmable PWM digital control with a 333 Hz refresh rate and 4 μsec dead band
●Wide 4.8-8.4 V HV operating range with a 25T-Ø4.94 mm spline

Applications
➤Ideal for micro RC cars, small model vehicles, model aircraft, robots and other compact applications requiring lightweight, programmable and responsive servo contro
