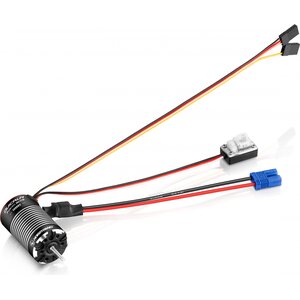

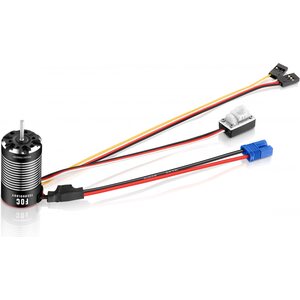

Hobbywing HW30120403 - QuicRun Fusion MINI16 3000kV 2-3S med Intergrated ESC 30A
The QuicRun Fusion Mini16 FOC system features an integrated design of the ESC and motor, simplifying the car frame layout and wiring for enhanced convenience. Employing FOC (Field Oriented Control)driving mode for rock crawlers, it delivers strong low-speed torque, improving upon standard brushless systems and often being preferred over brushed systems for its overall feel.
The system boasts high efficiency, generates less heat, and effectively extends run time while the motor operates more quietly and smoothly. With an IP65 protection grade, it’s capable of running in all conditions. It offers intelligent torque output and speed closed-loop control for precise handling and includes active drag brake force adjustment, providing superior holding power on inclines.
Equipped with a strong built-in switch mode BEC, the system offers a continuous current of up to 4A and supports switching between 6V and 7.4V, enabling it to drive high-torque and high-voltage servos. It also includes multiple protection functions: battery low voltage, overheat, throttle loss, and lock-up protection. For convenient ESC parameter settings, it supports LED and LCD G2/Pro program boxes.
QuicRun Fusion Mini16 specs:
Scale: 1/16th,1/18th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Yes
Cont./Peak Current: 30A/80A
Input Voltage: 2-3S LiPo,6-9 Cells NiMH
BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
KV: 3000KV
Motor Poles: 4
Input Wires: 18AWG150mm
Input Connectors: EC2
ESC Programing via SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming cable
Firmware Upgrade: Not Supported
Size: 24x42mm
Shaft diameter / exposed shaft length: 2.3mm/13.5mm
Weight: 72g（including wires&connectors）
Applications: 1/16th,1/18thRock Crawler
