Power HD GTS-2

Power HD GTS-2

Power HD GTS-2
Power HD GTS-2

Цена
146,90 + расходы на доставку
Цена с НДС 25.5 %


Количество
шт


В наличии на складе
Store Vaasa0 штк, Только самовывоз.
Store Vantaa1 шт немедленно
При доставке из интернета1 шт немедленно

Код заказа
PHD086
Штрихкод
6929188022229
Наличие
Немедленно

Информация о наличии на складе

Местоположение Store Vantaa: a-147-0100-a-000


Описание товара

The Power HD GTS-2 servo weighs only 47 grams and is 3 mm shorter than conventional low-profile servos.

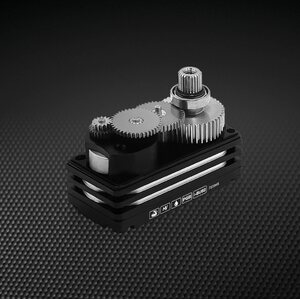

The output gear is made of TC4 titanium alloy, which is lighter than 303 steel gears and increases hardness and toughness by 50%.

The GTS-2 servo is available in 2 versions:

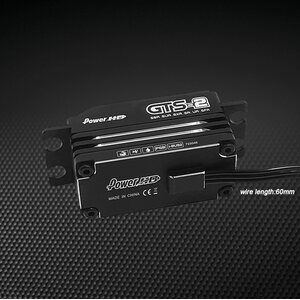

The 6cm Kanbel version has a receiver cable outlet at the bottom of the housing, which increases the space for the receiver. This version is particularly suitable for 1:10 electric touring cars.

The 18cm cable version has a normal cable outlet, which is ideal for 1:10 buggy, 1:10 nitro touring, and e.g. 1:8 GP.

Highlights

Supports the i-BUS2 protocol of FLYSKY remote controls

Servo parameter setup / data logging / warning / and other functions

 - Small size and light weight of the steering gear

-Gearbox type: Titanium + 7075

-Supports high-speed mode of branded radios

  Noble NB4+ Pro modes: NOR / SR / SFR
  Futaba modes: NOR / SR / UR
  SANWA modes: NOR / SHR /SSR / SUR / SXR
-Support of the Power HD program box PG-CB63

-4-pole brushless motor

-High performance/ Long service life/ Heat resistant/ Faster response

Data monitoring function:

Monitor and record the voltage, temperature and signal of multiple servos for up to 1 hour so that drivers can check the data after the race.

GTS-2 specifications

Torque (6.0V): 15.0 kg-cm / (208.3 oz/in)
Torque (7.4V): 18.0 kg-cm / (250.0 oz/in)
Torque (8.4V): 23.0 kg-cm / (319.4 oz/in)
Speed: 0.080 sec (6.0V) │ 0.073 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating voltage: 6.0 ~ 8.4 DC volts
Current consumption: 3.6A
Weight: 47g (1.66 ounces)
Bearing type: Ball bearing x 2
Motor type: 4-pole brushless motor
Gear Type: Titanium + 7075
Operating temperature: -10℃~60℃
Working frequency: 1520μs /50 - 1666hz
Size: 41.0 x 20.0 x 23.6 mm (1.61 x 0.79 x 0.93 in)


Размер товара в упаковке или размер торговой упаковки составляет 150 x 150 x 100 mm.


Вес
0,1 kg(Возможно включает вес торговой упаковки)


Страна-производитель
Китай
