1/10 Scale 4-Tec 2.0 AWD Chassis

The all-new 4-Tec 2.0 AWD chassis provides the ultimate on-road driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. A smooth undertray reduces drag and prevents snags on expansion joints while the finely tuned suspension keeps the wheels glued to the pavement for maximum on-road performance. The waterproof XL-5 electronic speed control channels power to the Titan® 12-turn motor for four wheel tire-spinning acceleration and blistering 48+kmh* top speed. This is one chassis that begs to be driven hard!

Choose your own body, battery, and charger (sold separately) to create your custom ride!


QUICK FEATURES ON 4-TEC 2.0 AWD CHASSIS (#83024-4)

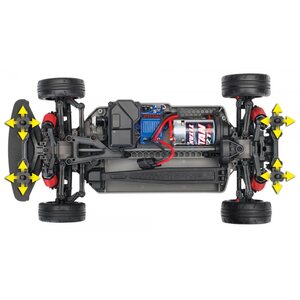

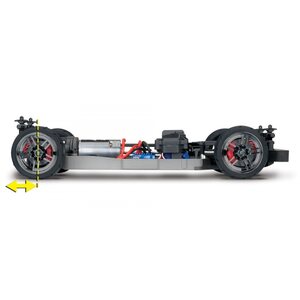

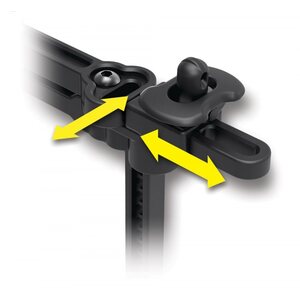

• Adjustable chassis accepts standard 200mm bodies
• Full-time 4WD

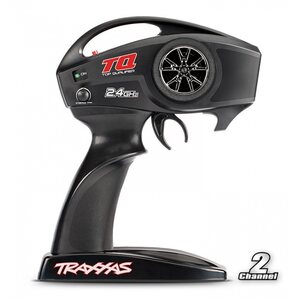

• TQ™ 2.4GHz radio system
• Waterproof electronics for all-weather, all-season R/C excitement
• Titan® 12-Turn 550 modified motor
• Powerful XL-5 waterproof electronic speed control
• Built brushless ready for easy upgrade to Velineon® power
• Low-CG fiber-composite monocoque chassis with high approach angle front bumper
• Race-proven sealed differentials

Modified Muscle

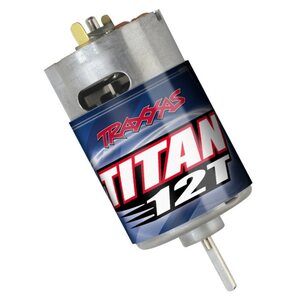

The 4-Tec's Titan 12T 550 modified motor pumps out incredible mod-motor power with virtually maintenance-free operation and long-lasting performance. The Titan's integrated cooling fan pulls cool air through the motor to keep temperatures down. A cooler running motor equates to faster speeds, more time behind the wheel, and extended motor life. The XL-5 Electronic Speed Control offers high current handling, EZ-Set® one-button setup, and smooth high-frequency control. Three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance are all features you might expect to only be available on an expensive replacement ESC. As today's batteries store more and more energy inside their cells, traditional battery connectors could no longer keep up. The included patented Traxxas High-Current Connector opens the door for unrestricted current flow.


High Performance Modular Chassis
The all-new high-tech 4-Tec 2.0 chassis keeps weight positioned as low as possible for a crisp, responsive feel. Three interlocking modules provide unprecedented rigidity and tight tolerances. Not only is the chassis stiffer and more responsive, it’s easy to disassemble.


Brushless Ready

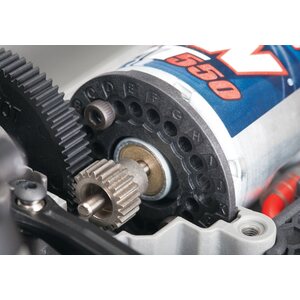

Some vehicles claim to be "brushless compatible," but neglect to mention the long list of parts required to handle the extra power. At Traxxas, we build our vehicles tough enough to be brushless ready out of the box. The 4-Tec 2.0 chassis allows the massive VXL-3s power system to drop right in with minimal modifications. Overkill? Perhaps, but we can't resist going 70+mph. We don't think you'll resist either, so the drivetrain is built to handle the horsepower and speed.

100% Fully Assembled
The Traxxas 4-Tec 2.0 rolls out of the box pre-assembled with a factory-adjusted TQ™ 2.4GHz radio, XL-5 ESC, Titan 12-Turn 550 modified motor, and detailed instructions. Choose your own body, battery, and charger (sold separately) to create your custom ride. Traxxas backs the 4-Tec 2.0 and all of our products with top-notch support that is second to none. A staff of skilled representatives is on hand to answer your questions via phone, website, or e-mail. Unmatched parts support keeps your Traxxas vehicle running strong with parts and support from thousands of hobby dealers worldwide. Traxxas goes the extra mile to ensure that your R/C experience is easy and fun–and fast!


4-Tec 2.0 (#83024-4) SPECS

• Length: 379 mm
• Front Track: 196 mm
• Rear Track: 200 mm
• Center Ground Clearance: 9 mm
• Weight: 1.28 kg
• Height (overall): 62 mm
• Wheelbase: 256 mm
• Shock Length: Short (front and rear)
• Tire Diameter: 66 mm
• Tire Width (front): 26 mm
• Tire Width (rear): 30 mm
• Wheel Diameter: 53 mm (2.1")
• Speed Control Type: XL-5™ Electronic Speed Control
• Motor (electric): Titan® 12T 550 (12-Turn)
• Overall Drive Ratio: 9.49
• Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
• Gear Pitch: 48
• Chassis Structure/Material: Molded Tub / Nylon Composite
• Drive System: Shaft-Driven, Direct Drive 4WD

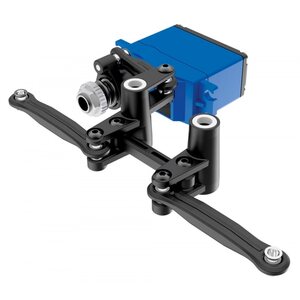

• Steering: Dual-Bellcrank
• Radio System: TQ™ 2.4GHz Radio with #6519 3-Channel Micro Receiver
• Skill Level: 1
• Top Speed: 48+kmh*
• Battery Tray: L158 x W46 x H23/26 mm

Required Items:

• (Sold Separately): 4 "AA" Batteries (for transmitter), Charger, 6 or 7-Cell NiMH or 2-cell LiPo Battery

*With optional gearing and 2S LiPo battery (items sold separately)

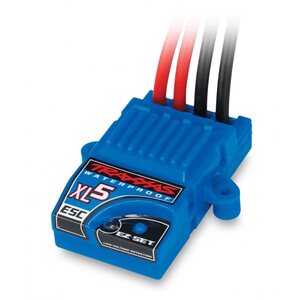

XL-5 (WATERPROOF) ESC SPECIFICATIONS

• Input voltage: 4-7 Cells NiMH, 2-Cell (2S) LiPo
• Case Size: 1.23"W x 2.18"D x 0.61" H
• Weight: 2.44 Ounce
• Motor Limit: 15-turns** (540 Size)
• 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 60A
• Braking Current: 60A
• Continuous Current: 14A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 5"
• Input Harness Wire: 26 Gauge / 9"
• Transistor Type: MOSFET
• PWM Frequency: 1600 Hz
• Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Single-button setup: Yes, Traxxas EZ-Set®

Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode*: 50% FWD, 100% brakes, 50% REV

*Patented
