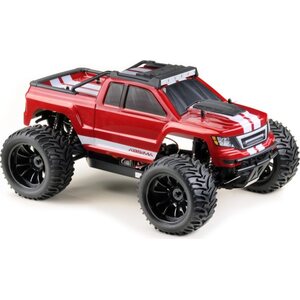

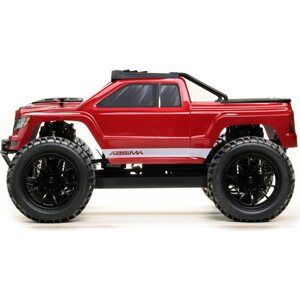

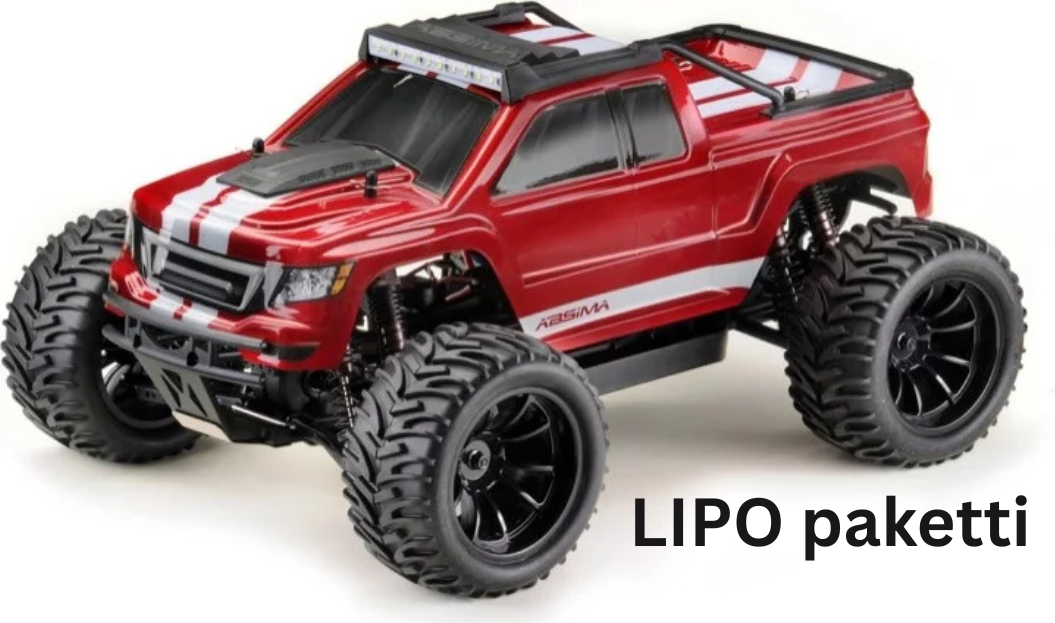

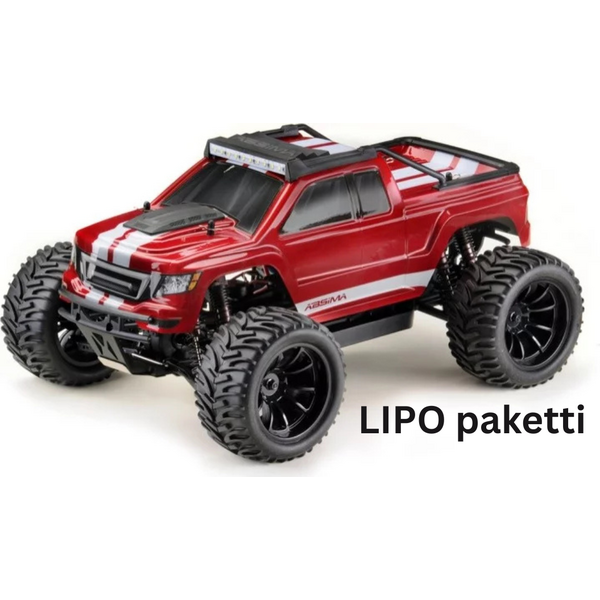

Absima AMT3.4V2-BL 1/10 Truck 4WD Brushless RTR:
UNBELIEVABLE POWER - the new Hotshot 3.4BL series is equipped with a powerful brushless electric motor and waterproof electronic speed controller (ESC). Shaft driven 4WD provides you with the necessary traction to maneuver the toughest obstacles and the forward/reverse ESC is beneficial in navigating tight spots. Lightweight plastic chassis, four oil filled adjustable coil over shocks, and independent suspension offer solid performance. Fear not! A 2.4GHz radio system and waterproof electronics ensure control, for those who dare to unleash the power.
HIGHLIGHTS:
Water-resistant 50A BL Speed Controler (programmable)
Powerfull 3300KV BL Motor
2.4GHz A.F.H.D.S. Radio System
8 pcs. Full Aluminum Shocks
Steel Motor Transmission

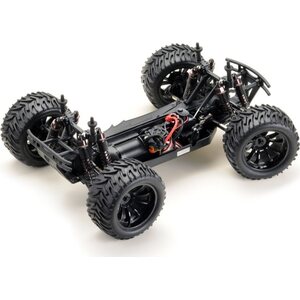

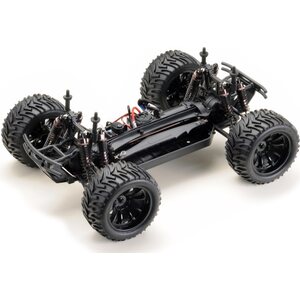

GENERAL CHASSIS FEATURES:
4WD
Complete ball bearing
8 pcs. adjustable aluminum oil shocks
Gear differential front/rear
Aluminum motor mount
Complete covered transmission
New chassis layout for better performance
Adjustable turnbuckles
Adjustable wishbones
Aero disc racing wheels
Full printed body
Sticker sheet for a unique design
A lot tune-up parts available!
TECHNICAL SPECIFICATION:
Measure (L/W/H): 425x300x200 mm
Weight: 1850g
Wheelbase: 270 mm
Chassis clearance: 55 mm
Tire width: 57 mm front / 57 mm rear
Tire Ø ± 116 mm
Shock spring force: medium / Length: 95mm f/r
Differential oil viscosity: 1.000 front / 3.000 rear
Shock oil viscosity: 400 f/r
Steel Motor transmission: Pinion 21T / Gear 64T
Pinion module: 0.6
MORE FEATURES:
BL Speed Controller (2110007): programmable (brake power, neutral brake, drive mode, punch, V cut-off) / NiMH (7.2V) & LiPo (7.4V/2S) suitable / Amps: 50A cont./300A peak / BEC 6V/3A / Overheat cut-off / Drive function: front/reverse/brake (standard) / Plug system: T-plug (Deans style)
Servo (2030003): 4kg steering force / 25T outdrive
Motor (2130005): 3300KV / 27.400RPM @ 7.4V / Operating voltage: 4.8 - 11.1V / Size: 540
Radio (2000103): 4-channel radio / 4-channel receiver / reverse / dual rate / trimming / waterproof receiver
SCOPE OF DELIVERY:
Monster Truck "AMT3.4BL" RTR - brushless version
2.4GHz Radio System
Manual
Sticker Sheet
REQUIRED ACCESSORIES:
Battery - Racing Pack NiMH or LiPo (recommended)
Charger
Absima Charger LC-2.0 LiPo:
The LC-2.0 is a small and easy-to-use charger for LiPo and LiHV batteries. There is also a "Storage" function to charge Li batteries to the correct storage voltage before storing them. Our Absima chargers have a variety of protective functions for safe charging.
Features:
25W charging power
Very compact and lightweight balance charger
Suitable for LiPo & LiHV
LiPo storage charging function
LED indicator
Simple operation through "Plug'n Play"
Tech Specs:
Input voltage: 100-240V AC
Charging current 2S LiPo: 2.2A
Charging current 3S LiPo: 1.5A
Charging accuracy: <0.01V, 4.20V
Balance current: max. 200mA
LED indicator: green: stand-by/full; red: charging process
Dimensions (L/W/H): 90x65x35mm
Weight (incl. cable): 150g
Scope of delivery:
LC-2.0 charger
Power cable
Instructions (DE/EN/FR)
Absima Greenhorn Vol.2 LiPo 2S 7,4V-50C 6000 HC (XT90/T-Plug):
GREENHORN LINEV2 - Absimas LiPo-Series
Absima Greenhorn LiPo batteries were developed for RC racing. Our batteries have to undergo numerous tests before delivery to ensure that criteria such as capacity, voltage and internal resistance meet our high-quality standards.
BATTERY SPECS:
- Cell technology: LiPo (Lithium Polymer)
- Voltage: 2S / 7.4V
- Capacity: 6000mAh
- Discharge rate: 50C
- Watt-hours: 44.4Wh
- Charge rate: up to 3C (1C charge recommended)
- Case Type: Hardcase
- Application: RC Car
CONNECTORS & WIRES:
- Power connector: XT90 (T-plug adapter included)
- Power wire gauge: 12 AWG silicone wire
- Power wire length: 100mm
- Balance connector: JST - XH - 2S
- Balance wire gauge: 24 AWG silicon wire
DIMENSIONS:
- Length: 138mm
- Width: 47mm
- Height: 25mm
- Weight : 305g ± 20g
NOTES:
- Only use a charger suitable for the battery type.
- Not suitable for children under 14 years of age. Use under the direct supervision of adults.
- Please observe the warnings enclosed with the battery and charger.
ValueRC LiPo Bag - Lipopussi - Latauspussi:
Sopiva LiPo pussi kaikille normaalikokoisille akuille!
LiPo pussiin mahtuu 3-4 normaalikokoista akkua.
Kätevät tarranauhat ja sopiva koko tekee käytöstä helppoa. Täällä säilytät kätevästi ja turvallisesti akut.
Mitat: 185mm x 75mm x 60mm
Miksi LiPo pussi?
LiPo akut ovat tehty Lithiumista joka väärin käytettynä palaa agressiivisesti. Lähes kaikki nykypäivän akut kuten puhelimen ja tietokoneen akut ovat tehty Lithiumista mutta RC käytössä akut ovat kovassa käytössä ja laturit ovat monesti tehokkaampia. Kunhan muistat ladata LiPo akun älylaturilla balansointi ohjelmalla niin mitään ei pitäisi tapahtua, mutta turvallisuuden vuoksi kannattaa akku ladata LiPo pussissa joka suojaa tulipalolta jos vahingossa lataat väärällä ohjelmalla ja väärin kytkettynä tai akku on vaurioitunut.
Huom. LiPo pussit saattavat vaatia että käytät akussa tasauksen jatkojohtoa jotta akun tasausjohto yltää laturiin hyvin:
Tooted»Elektroonika»Kaablid, adapterid ja ühendusklemmid»
Balancingboards and extension cables
Absima AA paristot 1.5V LR06 (4-pack) - Normaali paristot ohjaimeen:
Absima LR06 AA Premium batteries are environmentally friendly and meet all safety and environmental regulations. They do not contain harmful substances like Hg/Cd/Pb and are suitable for a temperature range from -10° to +50°.
Absima alkaline batteries have a higher output voltage of 1.5V than NiMH batteries with 1.2V and are ideal for electronic devices like remote control systems. The voltage is stable to ensure reliable operation.
Features:
No harmful substances such as mercury and cadmium
Low self discharge
Not rechargeable
Scope of Delivery:
4 pcs of AA LR06 alkaline batteries
