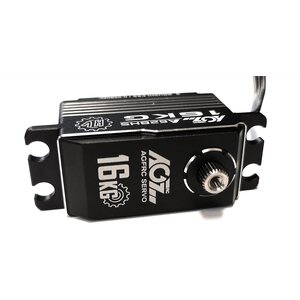

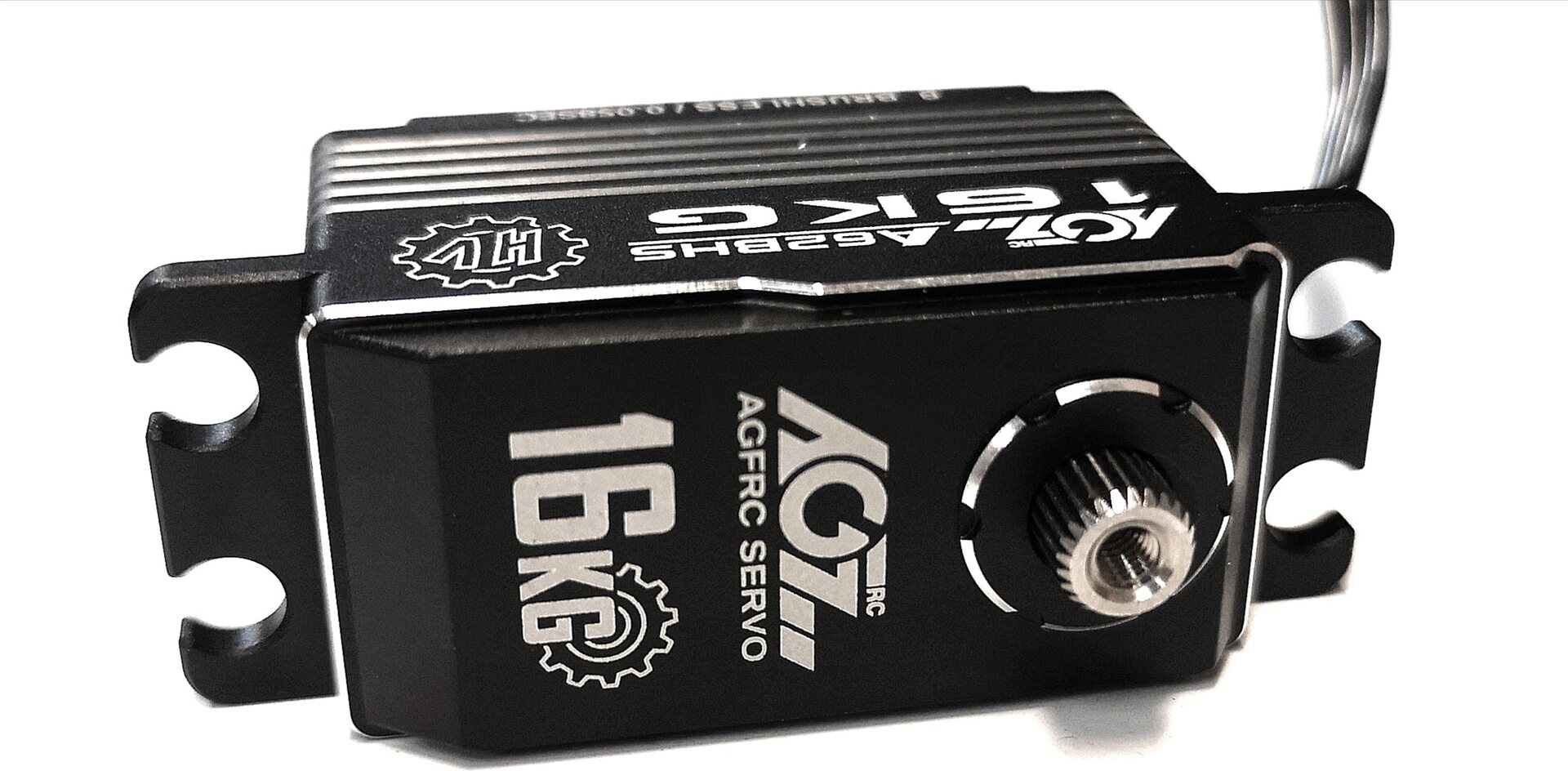

AGF A62BHS Digital Brushless High Speed Servo 16kg / 0.058s

The A62BHS digital brushless programmable low profile servo can reach a maximum torque of 16.0 kg-cm and a fast speed of 0.058Sec under the drive of the highest voltage of 8.4V. This high-performance servo is designed with a heat sink CNC case, which can prevent hot and stuffy phenomena when the model is running. In addition, the long-life brushless motor and the silk-smooth double ball bearings support the operation of the internal structure of the servo, which can effectively work with the steel gear precisely.




Feature

High Performance Low Profile Digital Servo

High Precision Steel Gears

Long Lifespan Brushless Motor

Reliable Dual Ball Bearings

Heat Sink Aluminum Case

Water And Dust Resistance

Programmable Digital Circuit

Ideal for 1/12, 1/10 On Road, Touring, Drifting, Boat, Airplane, Robot etc.




Specification


Item: A62BHS

Operating Voltage: 4.8-8.4V

Operating speed: 0.070sec/60° @ 6.0V

Operating speed: 0.065sec/60° @ 7.4V

Operating speed: 0.058sec/60° @ 8.4V

Stall Torque: 13.0 kg-cm (180 oz-in) @ 6.0V

Stall Torque: 14.5 kg-cm (201 oz-in) @ 7.4V

Stall Torque: 16.0 kg-cm (222 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40.8*20.2*26.5mm (1.60 x 0.79 x 1.04 in)

Weight: 57.2g

Connector Wire: TYU 200mm / 22AWG
