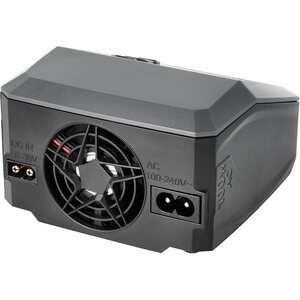

SkyRc S100 Neo LiPo 1-6s 10A 100W AC Charger

The S100neo captivates with its stylish and ultra-compact design, offering a maximum power of 200W for various battery chemistries (LiPo/LiFe/Lilon/LiHV/NiMH/NiCd/Pb) as a smart AC/DC charger. Additionally, it can be used as a power supply device. The adjustable voltage reaches up to 30V, and the current can go up to 12A.

Building on the beloved e680 charger, the S100neo presents itself with an impressive power capacity while being able to make the best of its versatility and powerful charging capabilities. But the S100neo is more than just a simple charger; it also functions as an advanced digital power supply, offering precise and efficient charging with unparalleled accuracy in both Constant Current (CC) and Constant Voltage (CV) modes. Furthermore, it allows voltage measurement without the need for an active power supply, significantly simplifying the evaluation of battery voltage. All while the vibrant color LCD screen is enhancing the user experience through intuitive navigation and easy monitoring.

Features:

Efficient successor to the well-known e680 charger
2 inputs, 1 output
Max. 100W AC charging power
Max. 200W DC charging power
Time-saving charging with up to 12A
Easy to use 3 button controls
Lightweight and compact
With PD/QC3.0 fast charging
Compatible with Charger Master
Technical Specifications:

Input Voltage:
AC: 100-240V (50-60Hz)
DC: 6-30V

Charge Power DC:
max. 200W (+- 10%)

Charge Power AC:
max. 100W (+- 10%)

Discharge Power:
5W (Hauptanschluss) (+- 10%)
max. 20W (Balance Port, LiPo/6S)

Charge Current:
LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb:
0.1A~0.5A (±0.1A) | 0.6A~12A (+-10%)

Discharge Current:
LiPo/LiIon/LiFe/LiHV/NiMH/NiCd/Pb:
0.1A-0.2A (±0.1A) | 0.3A-2A (+-10%)

Balance Current:
max. 1.0A

Trickle Charge Current:
50 ~ 300mA & OFF Standard: 60mA

Battery Types:
LiXX: 1-6S
NiXX: 1-15S
Pb: 3S / 6S / 12S

Weight:
340g

Dimensions:
105x105x62mm


DC Power Supply

Voltage:
2V ~ 30V

Current:
0.1A ~ 10A (Voltage 2V ~ 2.9V)
0.1A ~ 12A (Voltage 3V ~ 30V)

Over Current Protection:
0.1A (+- 0.1A)
0.2A ~ 4A (+- 20%)
4.1A ~ 10A (+- 10%)
10.1A ~ 12A (+- 5%)

Power:
AC Input: max. 100W
DC Input: max. 200W


DC Motor Run-in

Voltage:
3-12V

Current:
1-5A

Direction:
Forward

Time:
1-60min

Protections:
Motor Stall Protection
Over Current Protection
Overload Protection

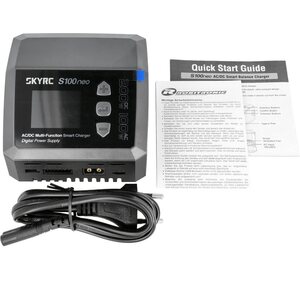

Scope of Delivery:
1x SKYRC S100neo Charger
1x Manual
