Arrmas GIGANTISKA 1/5 Kraton 8S EXB är här!
Nu kan du välja att iställe för RTR versionen bygga den största, tuffast och coolaste Kratonen i byn!
I EXB versionen väljer du själv din elektronik och bilen är fylld med EXB prestandadelar.
The HUGE 1/5 ARRMA Kraton 8s EXB has arrived!
Now you can choose the RTR version or build yourself the biggest, meanest and coolest Kraton in the town!
In the EXB you get to choose your own electronics and the car is loaded with EXtreme Bash tuning parts.
Fully assembled and ready for your powerful electronics, the ARRMA® KRATONTM 1/5 4WD EXtreme Bash
Roller Speed Monster Truck adds extra toughness everywhere it counts. Topped with an exclusive
EXB matte and gloss finish body, it’s the King of KRATONS!

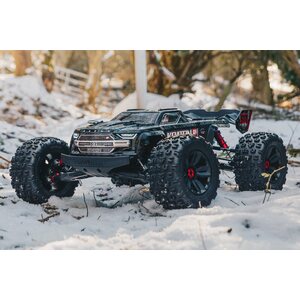

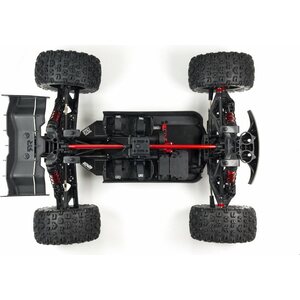

The KRATON 1/5 4WD EXtreme Bash Roller Speed Monster
Truck showcases ARRMA® bashing performance at its biggest
and best — it’s the King of all KRATONS, providing large scale
bashers with the ultimate Speed Monster Truck experience.
Add your choice of powerful 8S brushless power system and
watch the KRATON 1/5 EXB blast over punishing off-road
terrain with ease.
ARRMA engineers have added extra toughness everywhere
it counts to make the fully assembled chassis a perfect plat-
form for high-speed bashing over brutal terrain. Numerous
EXB-hardened parts and options give the KRATON 1/5 4WD
EXtreme Bash Roller Speed Monster Truck virtually unstop-
pable strength right out of the box. They include a 5mm thick
EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB
red-anodized CNC aluminum front brace mount; and EXB
front bumper with impact absorbing design. Topping it off is
an exclusive EXB matte and gloss effect finished body for a
look unlike any other vehicle.
Features
• Designed Fast, Designed Tough
• Add your choice of electronics to be as fast and powerful as you
like.
• Numerous EXtreme Bash parts and options for extreme durability
— the ultimate large-scale vehicle out of the box
• EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
• EXB Red-anodized CNC aluminum front brace mount

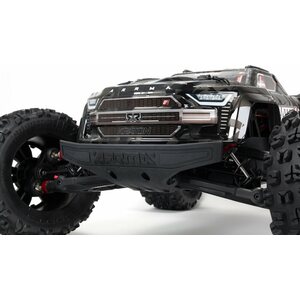

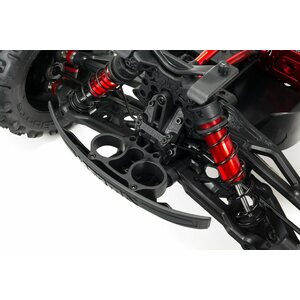

• EXB Front bumper with impact absorbing design
• Exclusive EXB matte and gloss effect body
• Black-anodized aluminum rear lower chassis brace

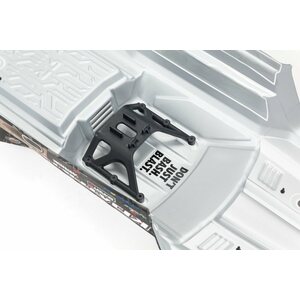

• Center body support and brace for maximum durability
• Strong composite chassis side pods
• Front and rear sway bars

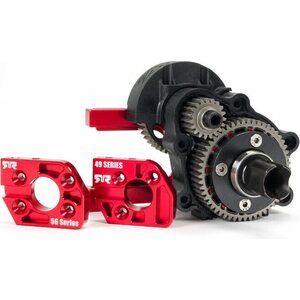

• Red-anodized aluminum 49 and 56 series motor plates
• Easy-access front and rear diff module design
• 47T and optional 39T spur gear

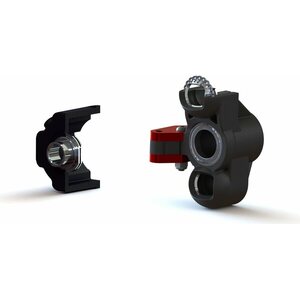

• Servo mounts for 1/5 and 1/6 servos
• 15T and 17T servo saver adaptors
• Heavy-duty servo saver springs
EXB (EXtreme Bash) Components
EXB-hardened components throughout its fully assembled chassis
give the 1/5 scale ARRMA KRATONTM EXtreme Bash Roller Speed
Monster Truck virtually unstoppable strength.

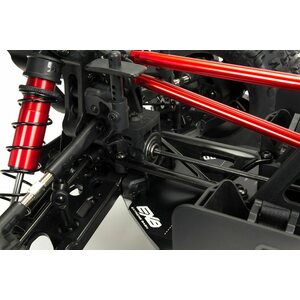

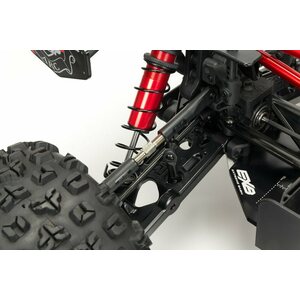

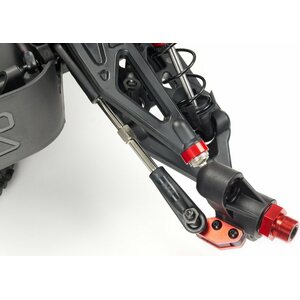

Steel Turnbuckles
Heavy-duty components including the 8mm thick steel rear turn-
buckles and 7mm thick steel steering turnbuckles enable the 1/5 scale
KRATONTM EXB to withstand extreme off-road bashing.

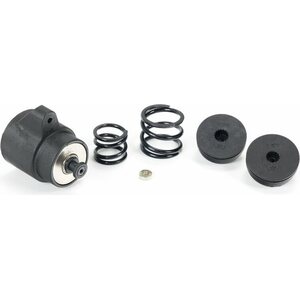

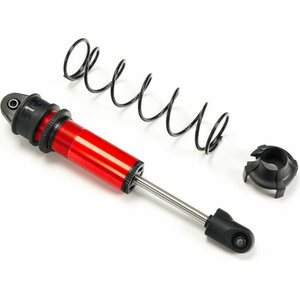

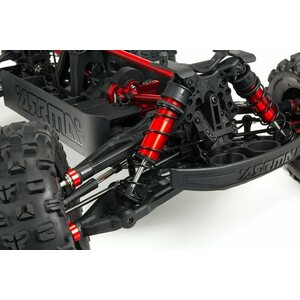

Oil-Filled Shocks
Mounted on ultra-thick composite front and rear towers and featuring
new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks
with 6mm thick shock shafts easily soak up bumps.

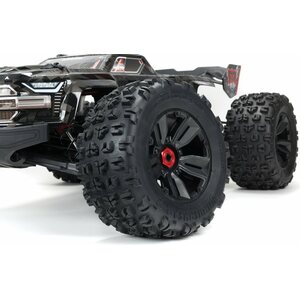

High-Traction dBoots Tires
Beefy dBoots COPPERHEAD 2 big block tires on multi-spoke
wheels with durable hubs deliver all-terrain traction — and add an ag-
gressive edge to the EXB matte and gloss effect finished truck body.
Quick Motor Access
ARRMA holds your maintenance downtime to the minimum with an
efficient, driver-friendly design. For example, the easy-access, 3-bolt
sliding motor mount allows quick motor removal.

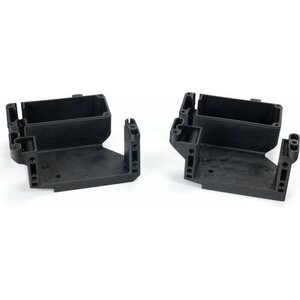

Electronics Module
The easy-access, molded electronics module screwed to the chassis
contains a waterproof receiver box, servo mount and ESC tray —
ready to protect your electronics from dirt and moisture.

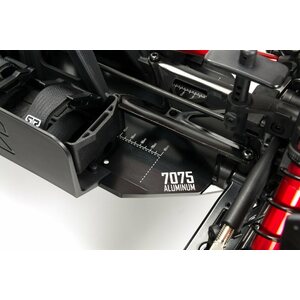

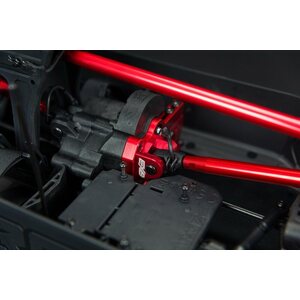

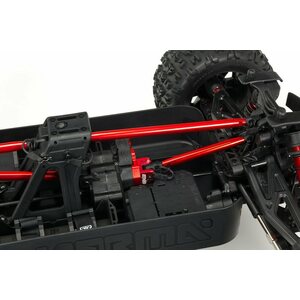

Multi-Structured Center Brace System

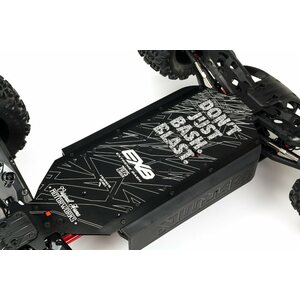

Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm
chassis plate includes strong composite chassis side pods and a cen-
ter body support and brace for maximum durability.

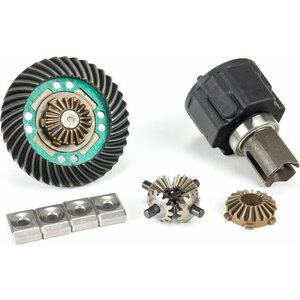

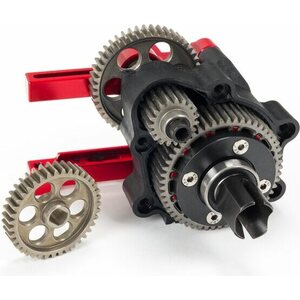

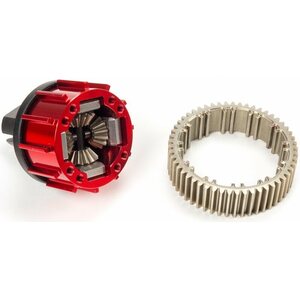

Durable Metal Construction
Durable steel driveshafts plus all-metal diff outdrives and gearbox in-
ternals keep the heavy-duty 4-wheel drivetrain rolling over punishing
tracks. An EXtreme Bash toughened suspension system smooths the
ride.
Completion Level: Race Roller
Scale: 1/5
Length: 30.35 in (771mm)
Width: 23.7 in (602mm)
Height: 11.1 in (282mm)
Weight: 23.32 lb (10.6kg)
Wheelbase: 19.33 in (491mm)
Front Track: 23.7 in (602mm)
Rear Track: 23.7 in (602mm)
Chassis: 5mm Plate, 7075-T6 Aluminum
Suspension: Independent
Shock Type: Oil-Filled, Coil-Over Springs
Drivetrain: 4WD
Differential: 3 Gear Diffs
Wheel Type: MT (4.88 in, 24mm Hex)
Wheel Diameter: 4.88 in (124mm)
Wheel Width: 3.54 in (90mm)
Tire Tread: dBoots® COPPERHEADTM 2
Tire Diameter: 8.31 in (211mm)
Spur Gear: 47T and 39T (Included)
Gear Pitch: 1.0MOD
Internal Gear Ratio: 9.06
Rollout (Tire Circumference): 26.11 in (663mm)
Body: Painted, decaled and trimmed

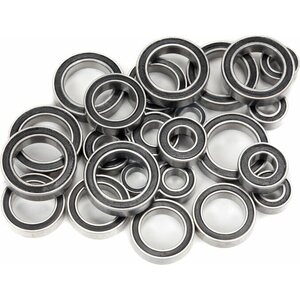

Ball Bearings: Full ball bearings throughout
Experience Level: Intermediate
Recommended Environment: All-Terrain
Is Assembly Required: Yes
Approx. Assembly Time: 1-3 Hours
NEEDED TO COMPLETE
Motor
Electronic Speed Control
Transmitter
Receiver
Steering Servo
Batteries
Charger
LiPo Charging Bag
