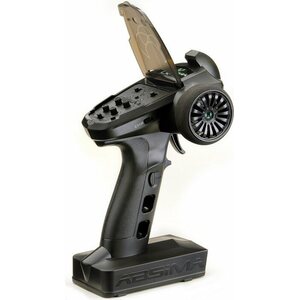

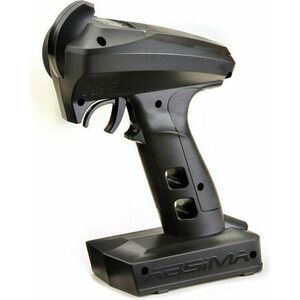

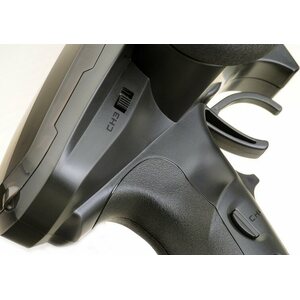

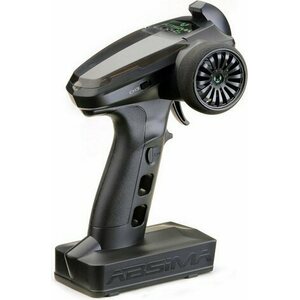

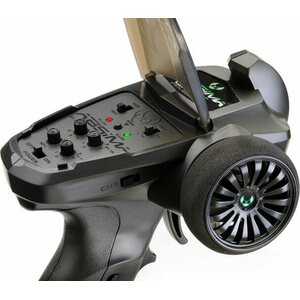

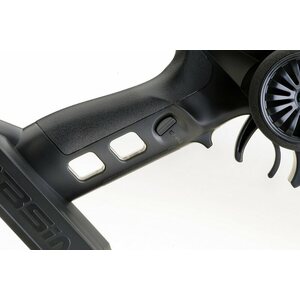

Absima 4-Channel Radio "CR4S" 2.4GHz incl. 2 Receivers

The "CR4S" is a 4-channel remote control including 2 receivers, which uses the latest AFHDS 2.4GHz "ANT" frequency hopping technology from ABSIMA.

Lightweight and compact design, as well as comfortable and ergonomic shape. In addition, the remote control has a "beginner mode" and is therefore also suitable for pilots with less experience as well as children.

The included receivers have a very compact design with a size of 30.2mm x 18mm x 13mm and fit in almost every receiver box.


FEATURES

- Description of the channels (the transmitter has 4 channels which are assigned as follows):
 - CH1: Steering wheel
 - CH2: Throttle lever (Trigger)
 - CH3: 3-position toggle switch
 - CH4: Push button

- Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.

- Trimming (TRIM): Adjustment of the straight run and throttle neutral position.

- Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.

- Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).

- Beginner mode: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.


SPECIFICATIONS

Radio CR4S:

- Channels: 4
- 2.4GHz Protocol: ANT
- Distance: >150m
- Battery (not included): 4 x AA 1.5 - 6V DC
- Low V Warning: <4.2V (only NiMH)
- Using LiPo TX battery possible: Yes (requires a battery with internal low v protection or an external low v protector)
- Charging interface: No
- Antenna type: Single antenna
- Temperature range: -10°C - +60°C
- Size: 118mm x 73mm x 145 mm
- Weight: ca. 130 g

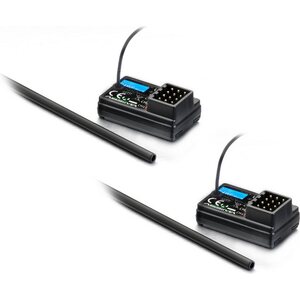

Receiver R4WP Micro (2020016) SPECIFICATIONS:


- Channels: 4
- Antenna type: external single antenna
- Waterproof: Yes
- Power: 3.5-8.4V
- Failsafe: Yes
- Temperature range: -10°C - +60°C
- Weight: 5 g
- Size: 30.2mm x 18mm x 13mm


SET INCLUDES

- 1 x 4-Channel radio "CR4S"
- 2 x 4-Channel receiver "R4WP Micro"
- 1 x Antenna tube
- 1 x Manual (DE/ENG/FR)
