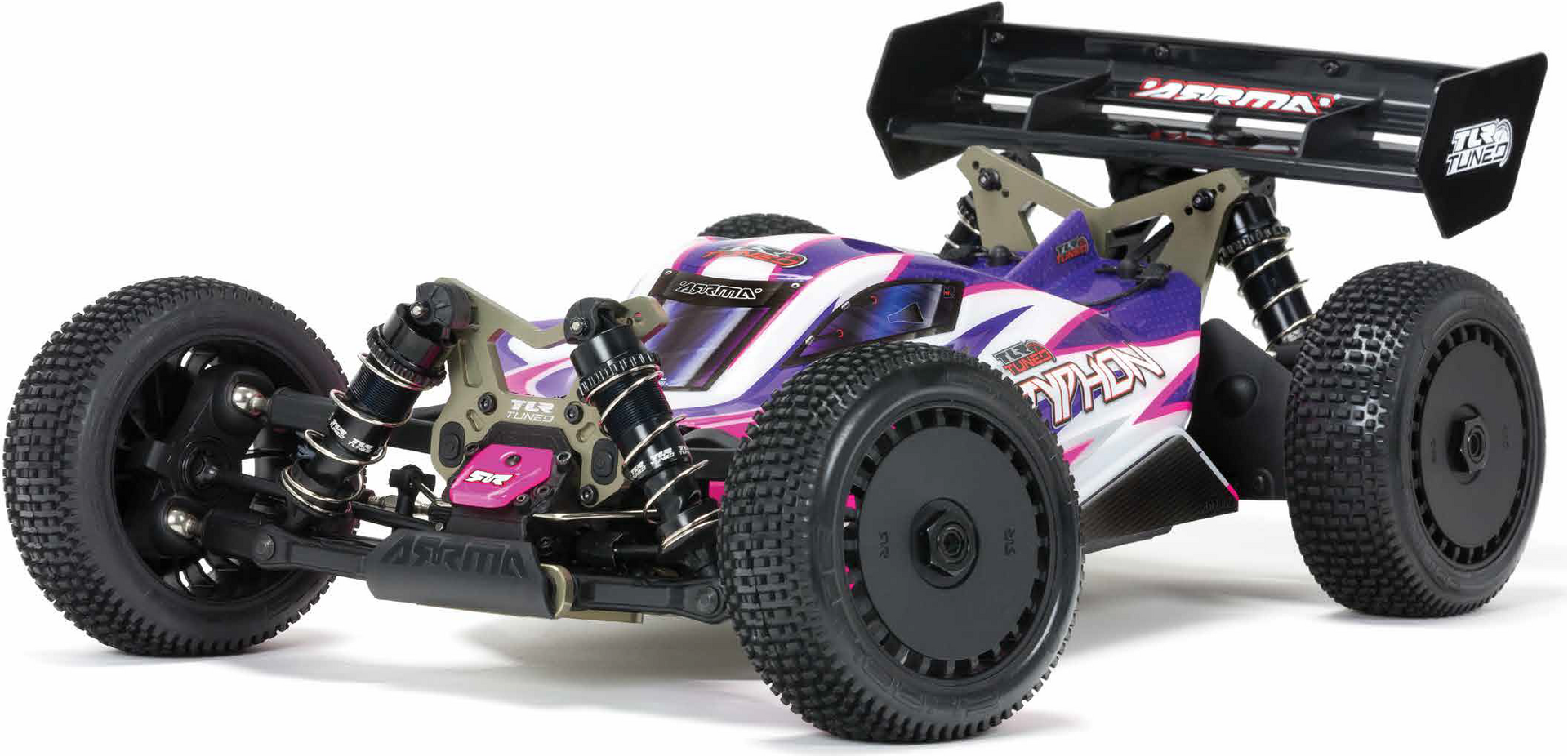

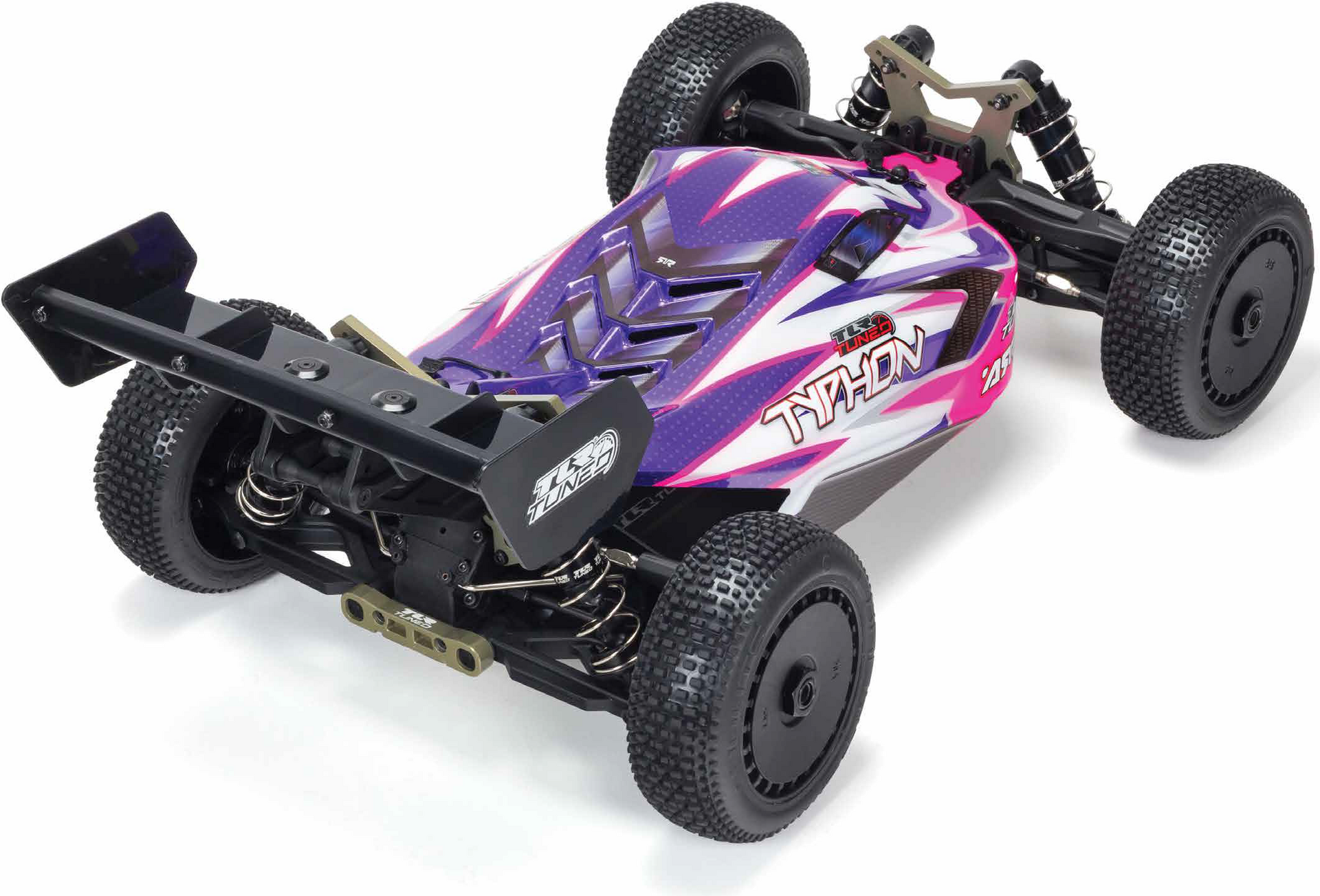

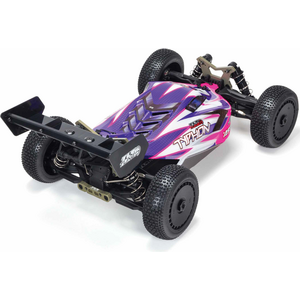

ARRMA RC TLR Tuned TYPHON 1/8 Race Buggy 4WD Roller

Race-ready with high-end upgrades!

Loaded with high-end parts to improve durability and handling, the 1/8
scale TLR® Tuned TYPHONTM 4WD Race Buggy Roller gives bashers the
perfect platform for stepping into the worlds of racing and chassis tuning.

Just add your choice of electronics!

Loaded with high-end parts for improved strength, handling,
and long-term durability, the 1/8 scale ARRMA® TLR® Tuned
TYPHONTM 4WD Race Buggy Roller provides bashers with the

perfect platform for entering competitive racing and experi-
menting with their chassis to achieve the best performance.

The large number of TLR® Tuned parts and factory-finished
body with bold racing color scheme immediately set this
model apart from its ready-to-run TYPHONTM 6S BLX 4WD
Speed Buggy brother. The TLR® Tuned TYPHONTM 4WD Race
Buggy Roller is the ultimate ARRMA® 1/8 scale buggy straight
out of the box, primed and ready to hit the racetrack — and
still tough enough to handle o-road bashing. Just add your

choice of 4S or 6S brushless power system and the TLR® Tu-
ned TYPHONTM will blast over rough terrain with ease.

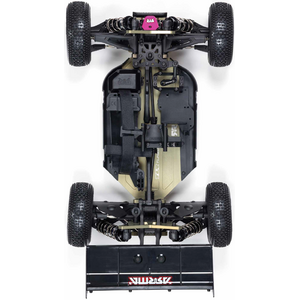

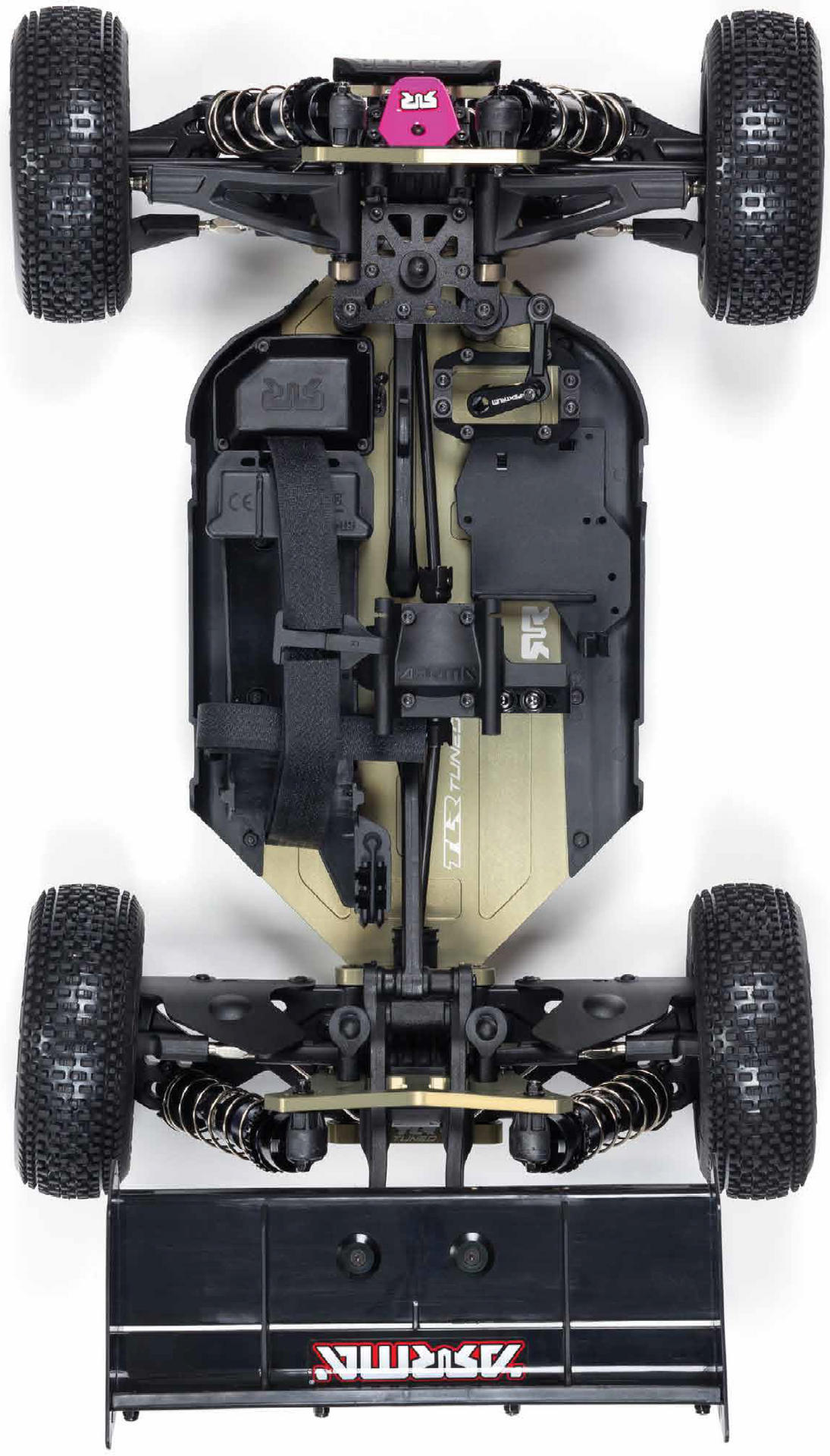

The durable TLR® Tuned aluminum upgrades include the chas-
sis plate, steering rack, adjustable upper and lower suspen-

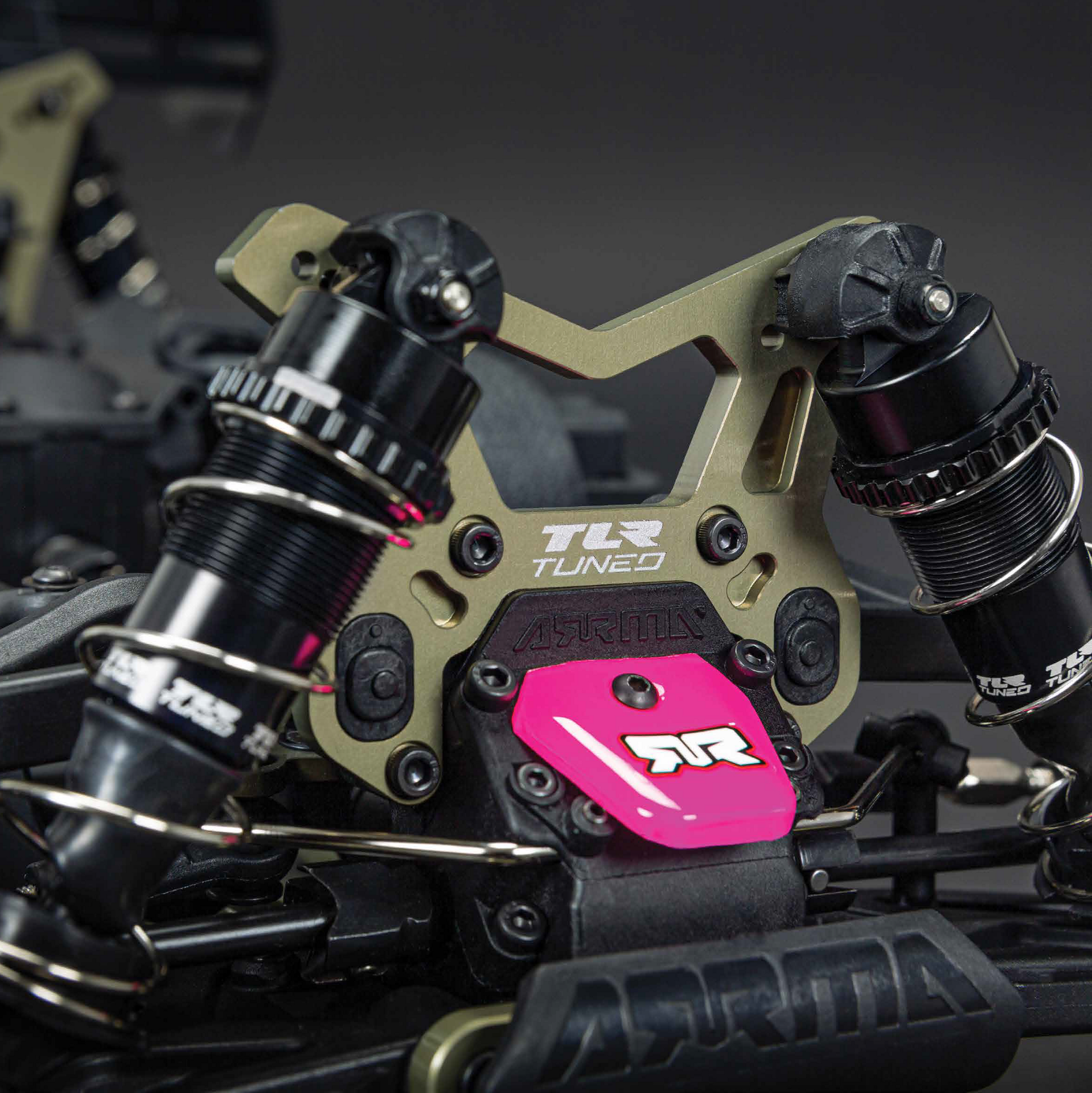

sion hangers, shock bodies, and front and rear shock towers.

All are laser-etched with the TLR® Tuned logo. The chassis
also features strong composite side pods and front and rear

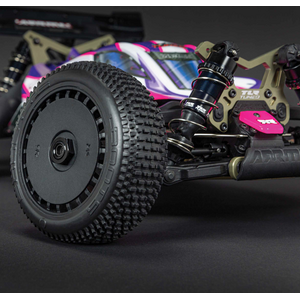

braces. The oil-filled, adjustable shocks have machined tape-
red pistons and Extreme Bash (EXB) stand-os.

TLR® Tuned Parts:

• TLR® Tuned 7075-T6 Laser-Etched Aluminum
Chassis Plate
• TLR® Tuned 7075-T6 Laser-Etched Aluminum Front and
Rear Shock Towers
• TLR® Tuned 7075-T6 Laser-Etched Aluminum Steering
Rack
• TLR® Tuned Laser-Etched Aluminum Lower Adjustable
Suspension Hangers
• TLR® Tuned Laser-Etched Aluminum Upper Adjustable
Suspension Hangers
• TLR® Tuned Laser-Etched Aluminum Shock bodies

Features:

• Strong front and rear composite chassis braces
• Strong composite chassis side pods
• Rear suspension dirt guards
• Oil-filled adjustable shocks
• Machined tapered shock pistons
• EXB Extreme Bash shock stand-os
• Heavy-duty drivetrain
• All-metal di outdrives and gearbox internals
• Durable steel driveshafts throughout
• Galvanized turnbuckles
• X-Hard servo saver spring
• Black anodized aluminum easy-access sliding
motor mount
• Black aluminum servo mount

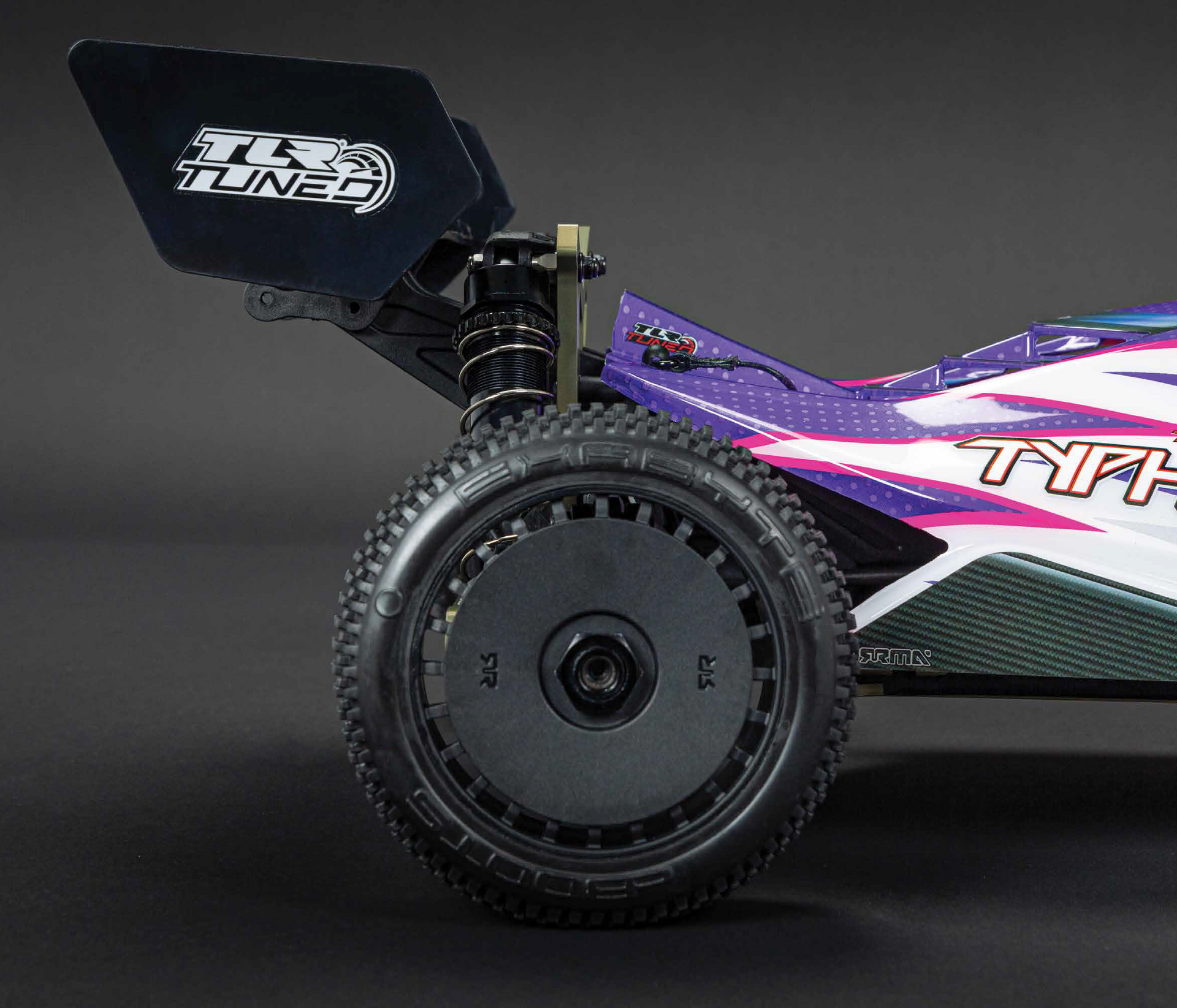

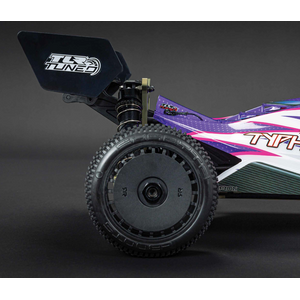

• Race Spec high rear wing mount
• Race Spec tunable rear wing

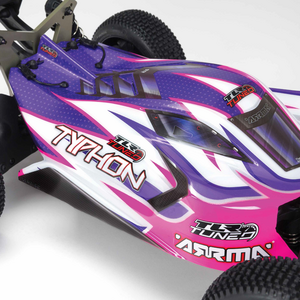

• Factory-finished Race Spec body colors and decals

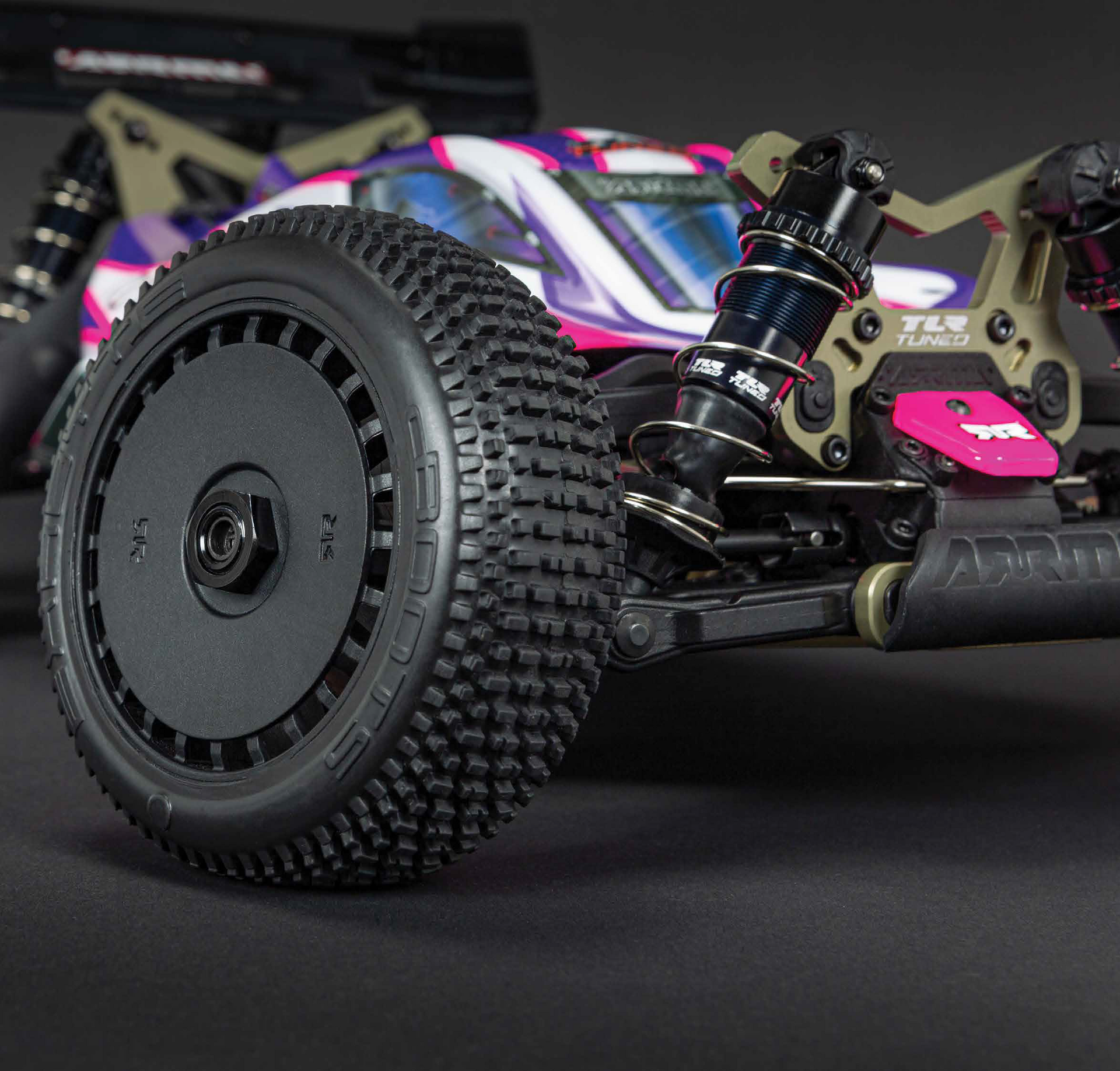

• dBoots® Exabyte race compound tires
• Low-drag 1/8 buggy wheels
• Aluminum 17mm wheel hex

SPECIFICATIONS:

Completion Level: Race Roller
Scale: 1/8
Length: 20.27 in (515mm)
Width: 12.28 in (312mm)
Height: 7.44 in (189mm)
Weight: 6.29 lb (2.86kg)
Wheelbase: 12.91 in (328mm)
Chassis: 3mm Plate, 7075-T6 Aluminum
Suspension: Independent
Shock Type: Oil-Filled, Coil-Over Springs
Drivetrain: 4WD
Dierential: 3 Gear Dis
Wheel Type: 1/8 Buggy (17mm hex)
Wheel Diameter: 3.27 in (83mm)
Wheel Width: 1.65 in (42mm)
Tire Diameter 4.65 in (118mm)
Spur Gear: 50T
Gear Pitch: 1.0MOD
Internal Gear Ratio: 3.3
Rollout (Tire Circumference): 14.61 in (371mm)
Body: Painted and trimmed,
decals included
Ball Bearings: Rubber shielded bearings
throughout
Experience Level: Intermediate
Recommended Environment: All-Terrain
Is Assembly Required: Yes
Approximate Assembly Time: 1-3 Hours

WHAT‘S IN THE BOX?

(1) ARRMA® TLR® Tuned TYPHONTM 1/8 Race Buggy
4WD Roller
(1) Product Manual

NEEDED TO COMPLETE

ESC
Motor
Pinion
Transmitter
Receiver
Steering Servo
Batteries
Charger
LiPo Charging Bag

Recommended:

SpektrumTM Smart PowerstageTM Bundle 4S (SPMXPS4I)
Spektrum Smart G2 S2200 2x200W AC Charger (SPMXC2010I)
Spektrum Smart G2 S1400 1x400W AC Charger (SPMXC2040I)

Maximum Battery Dimensions: 158 x 48 x 51mm (6.22 x 1.89 x 2.0 in)
Minimum Battery Specs: 5000mAh 35C
