Specially Designed for Crawling
Special Design for 1/10th, 1/8th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.
Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

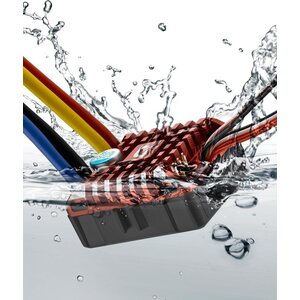

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.
Excellent Braking Performance
Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.
Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals
15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

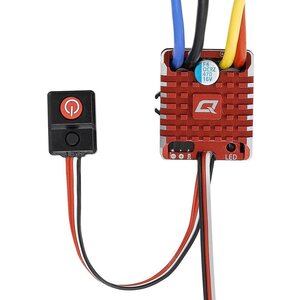

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

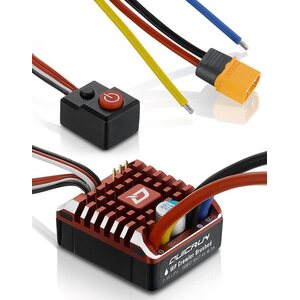

A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.
Cont./Peak Current : 80A/400A
Input Voltage: 2-3S Lipo/5-9 Cell NiMH
BEC Output: Switch Mode: 6V/7.4V@3A
Weight: 58.5g (w/Wires)
KV Rating/T Count:
Brushed Motor Limit with 2S LiPo/6S NiMH: ≥10T or RPM<email@example.com
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<firstname.lastname@example.org
Input Wires Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1

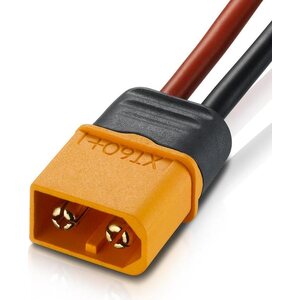

Input Connectors XT60
Output Connectors No
(Note: All the wire length above is the original length not the length you see from the outside.)
