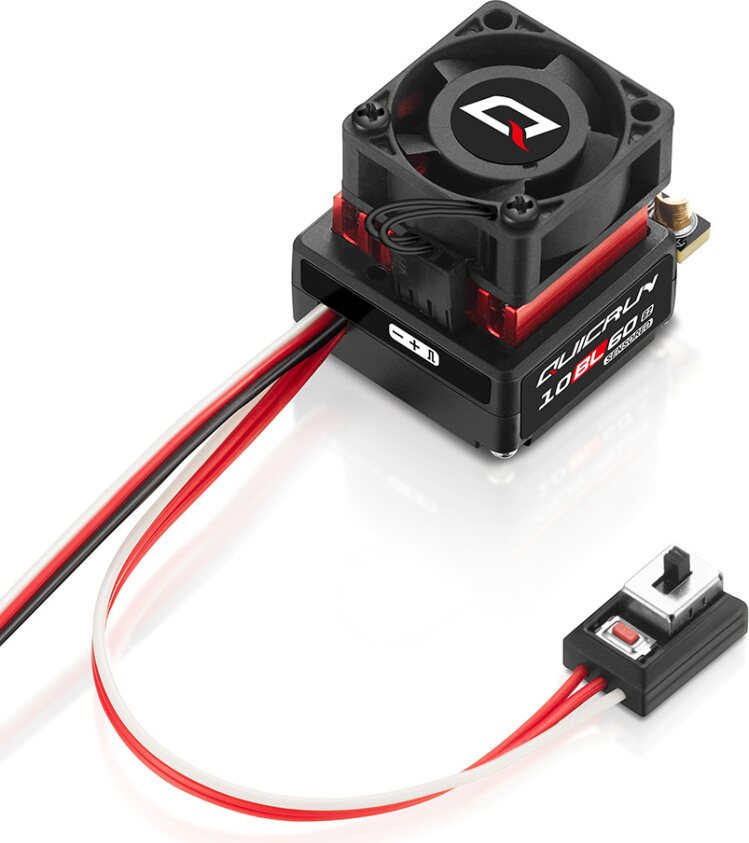

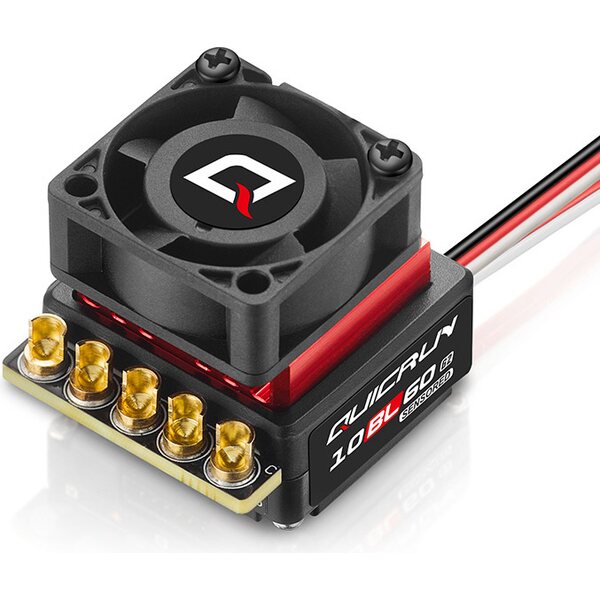

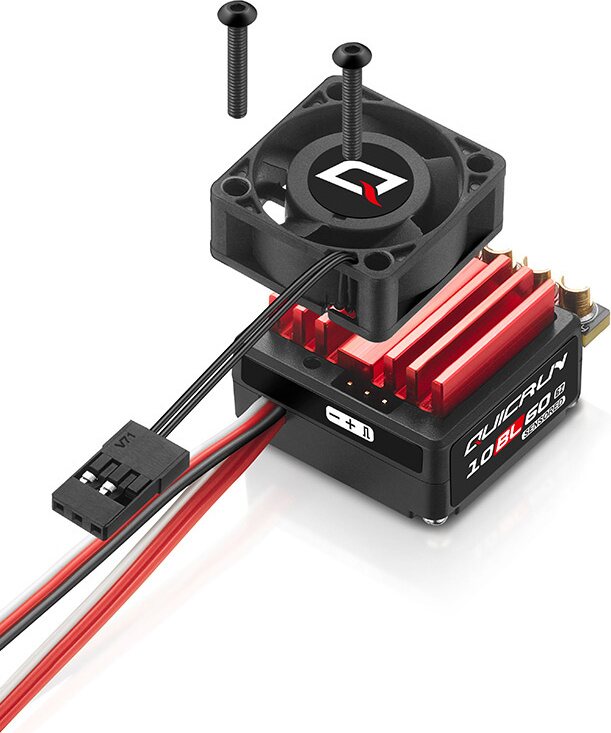

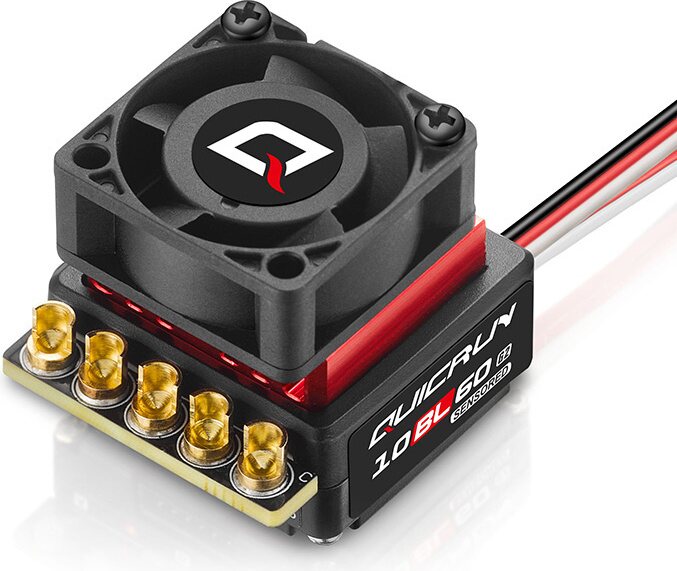

Hobbywing ESC QuicRun 10BL60 G2 Sensored Car 1/10

Hobbywing QUICRUN 10BL60 G2 Sensorillinen 60A Nopeudensäädin nolla ennakko mahdollisuudella

Outstanding quality, amazing price
Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Powerful BEC
Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output.
The continuous output current has increased from 2A to 4A
A peak current of up to 7A
Switchable output voltages of 6V/7.4V
It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.

Supports Boost/Turbo - Timing Technology
With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.

High reliability and durability
Low voltage protection
Over-temperature protection
Throttle signal loss protection
Overload protection
Continuous current: 60A
Peak Current: 200A
A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.

Support multiple programming methods
The ESC supports three programming options:
Multi-function LCD programming box
LED programming box
SET button
This flexibility allows users to choose their preferred method for adjusting parameters with ease.

Supports Motor Rotation Adjustment
This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
Counterclockwise (CCW)
Clockwise (CW)

Specs:
Type: 1/10, Brushless, Sensored ESC
Waterproof: NO
Cont./Peak Current: 60A/200A
Input Voltage: 2S Lipo
BEC Output: Switch Mode 6V/7.4V @ 4A
Input Wires: 14AWG-175mm
Output Wires: 14AWG-175mm
Input Connectors: No
Output Connectors: No
Size: 35x31x30.8mm
Weight: 66.5g (Included wires & connectors)
Data Recording: Not Supported
Firmware Upgrade: Not Supported

ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Shared with fan port

Applications
Motors: Sensored/Sensorless Brushless motor
Vehicles: 1/10 Touring, Buggy, Drift & 1/12 and 1/14 Vehicles
KV/Rating: QUICRUN 3650 SD G2
