Hobbywing Quicrun WP 880 Dual Brushed Esc 80A 30120301

Hobbywing Quicrun WP 880 Dual Brushed Esc 80A 30120301 varaosa RC-autoon.

Onko sinulla kysyttävää tästä RC-osasta? Kysy lisätietoja ja tarkempi sopivuus asiakaspalvelustamme

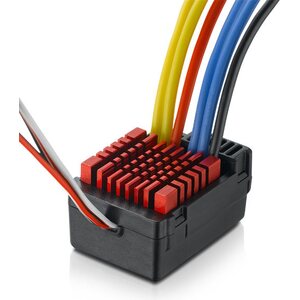

Speed Controller for dual brushed motors

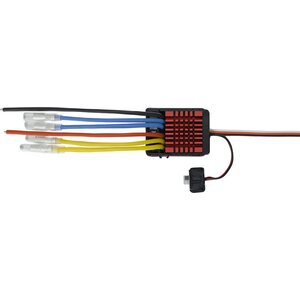

Two Sets of Output Wires

Two sets of output wires for simultaneously connecting to two motors. It’s very convenient for vehicles which are driven by two motors. Notes: the two sets of output wires are connected in parallel and can only be used to drive motors synchronously, the driving directions should be the same when connecting to two motors.

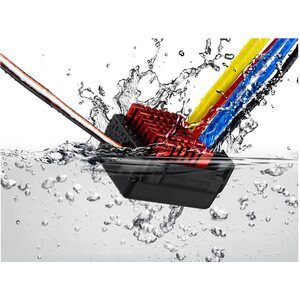

Applicable to All Weather Conditions

The waterproof and dust-proof design allows the QuicRun WP-880 Dual Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Excellent Brake Functions

Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Multiple Programmable Items

The QuicRun WP-880 Dual Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

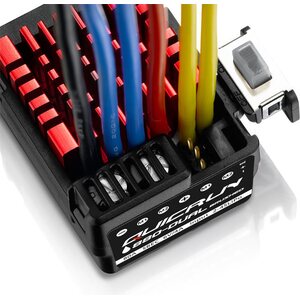

Separate Programming/Fan Port

The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

Specification:

Scale: 1/10th&1/8th
Brushed
Waterproof
Cont./Peak Current: 80A/400A
Input Voltage: 2-4S LiPo/5-12 Cell NiMH
BEC Output: 6V@4A (Switch-mode)
Input Wires: Red-16AWG-150mmx1 / Black-16AWG-150mmx1
Output Wires: Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2
Input Connectors: No
Output Connectors: 4.0 Bullet Connectors (Female)
LED Program Box: Supported
Size: 45.9X34.7X26.5mm
Weight: 75g
Supported Motors: Brushed Motor（540/550/775 size motors）
Vehicles: Various 1/10th & 1/8th Vehicles
KV Rating/T Count:
- Brushed Motor Limit with 2S LiPo/6S NiMH: ≥12T or RPM<30000@7.4V (540/550 size motors)

- Brushed Motor Limit with 3S LiPo/9S NiMH: ≥18T or RPM<20000@7.4V (540/550 size motors)

- Brushed Motor Limit with 4S LiPo/12S NiMH: ≥24T or RPM<15000@7.4V (540/550 size motors)
