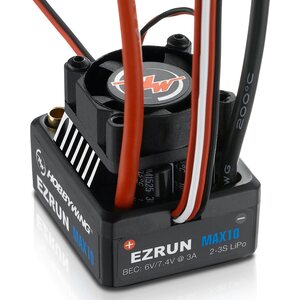

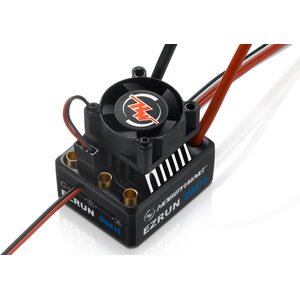

Hobbywing EzRun MAX10 60A ESC 1/10 30102602

Hobbywing EzRun MAX10 60A ESC 1/10 30102602

Hobbywing EzRun MAX10 60A ESC 1/10 30102602
Hobbywing EzRun MAX10 60A ESC 1/10 30102602
Hobbywing EzRun MAX10 60A ESC 1/10 30102602

Hinta
65,91 + toimituskulut
Sis. alv 25.5 %


Määrä
kpl



Liittimen vaihto - Jätä tyhjäksi ellet halua spesiaali liitintä

Ei varastossa. Toimitusaika arviolta 3 - 15 vrk.
Myymälä Vaasa0 kpl, vain nouto
Myymälä Vantaa0 kpl
Netistä toimitettavissa0 kpl

Tilauskoodi
HW30102602
Viivakoodi
5051294119478
Saatavuus
Arviolta 3 - 15 vrk tilauksesta. Jos tuote on loppu toimittajalta toimitusaika voi olla pidempi. Tarkemman toimitusajan voit varmistaa asiakaspalvelustamme. Normaalisti arvion luotettavuus on hyvä.

Varastotilanne ja saapuvat
Haluan ilmoituksen, kun tuotetta tulee lisää varastoon


Tuotteen kuvaus

Hobbywing Ezrun MAX10 60A Nopeudensäädin.

High Reliability & Durability
The MAX10 uses a Motor Thermal Protection circuit (in Sensorless Mode)

When pairing the MAX10 with a Hobbywing matching motor (i.e. EzRun 3652/3660 G2 motor), the temperature sensor cable on the ESC will monitor the motor temperature and protect the motor from irreversible damage due to overheating in real time.

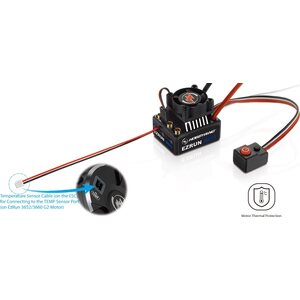

Motor Thermal Protection

Temperature Sensor Cable (on the ESC) for Connecting to the TEMP Sensor Port (on EzRun 3652/3660 G2 Motor)

Capacitor Thermal Protection

The capacitor thermal protection first implemented in the MAX10 will effectively protect capacitors from diaelectric failure causing irreversible damage to the ESC due to overload.



High Reliability & Durability

Built with high-quality components and coupled with cutting-edge firmware, the MAX10 is able to deliver unmatched
power and performance for even the most extreme racing applications, but it is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Super Internal BEC

The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various high voltage servos.



Applicable to All Weather Conditions

The waterproof and dust-proof design allows the MAX10 to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Advanced and Secure Electronic Switch

The MAX10 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.

Regular Firmware Updates Free of Charge

You can upgrade the MAX10 with the Hobbywing WiFi/USB LINK software, a WiFi module/ LED or program box (both sold separately) and a smartphone/laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Spec:


Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 60A/450A
Input Voltage: 2-3S LiPo/6-9 Cells NiMH
BEC Output: Switch Mode: 6V/7.4V,3A
Size: 39.4x32.8x23.1mm (w/o Fan)
Weight: 67.8g

Applications


Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
KV Rating/T Count: 2S LiPo: KV≤6000;3S LiPo: KV≤4000 (3652 Series of Motors)


Tuotteen koko pakattuna tai myyntipakkauksen koko on arviolta 135 x 90 x 55 mm.


Paino
0,176 kg(Sisältää mahdollisen myyntipakkauksen painon)


Valmistusmaa
Kiina
