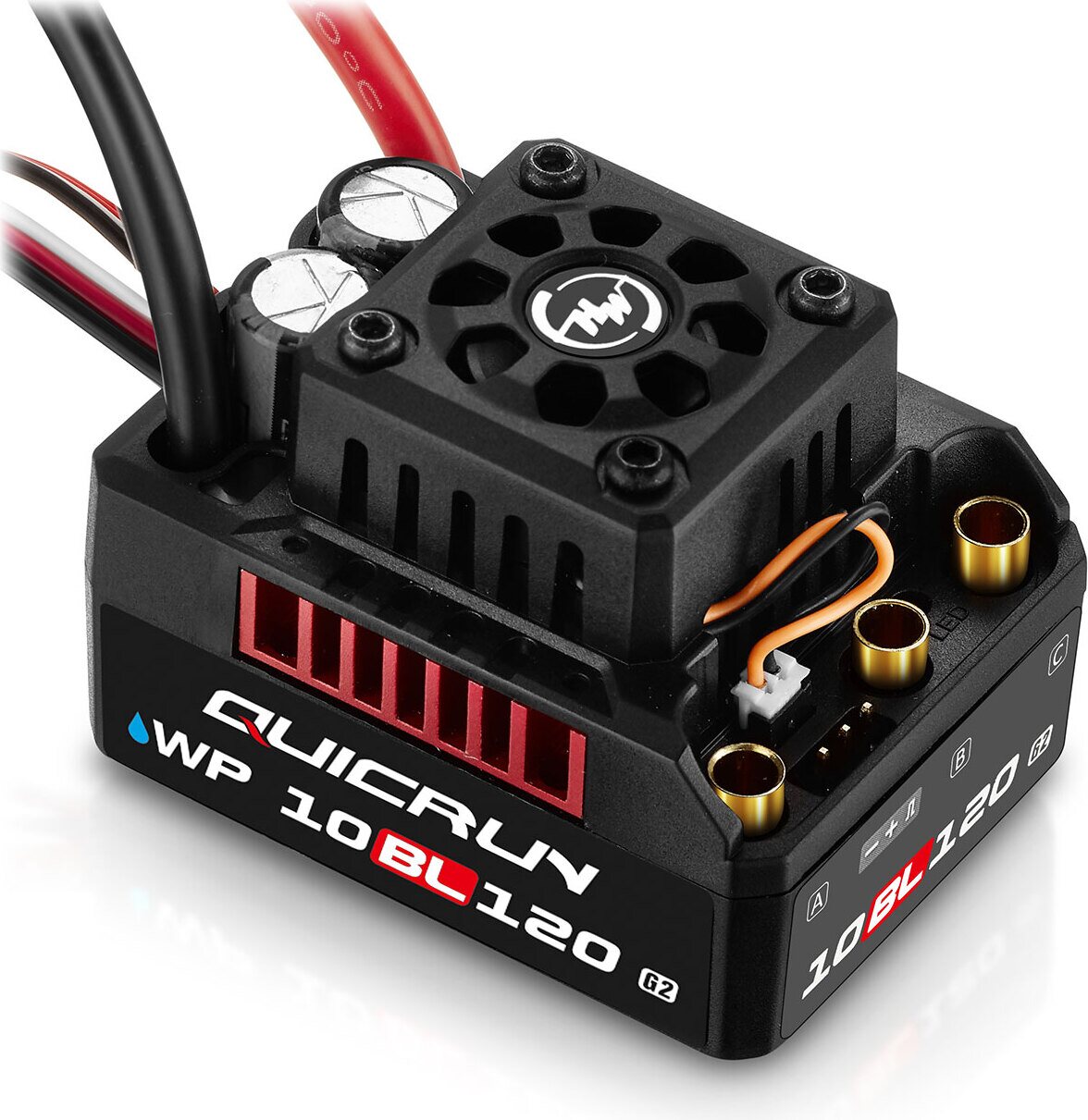

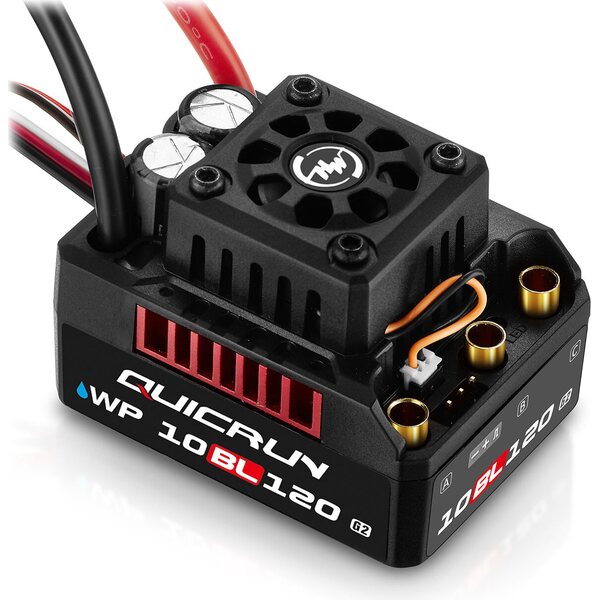

Hobbywing QuicRun WP10BL120 G2 Brushless ESC 120A 2-4s

The QuicRun WP 10BL120 G2 is an impressive brushless electronic speed controller for RC cars. Thanks to the intelligent freewheel technology, it achieves improved performance and greater driving efficiency while remaining cooler than its predecessor. With the powerful integrated BEC, switchable output voltages and efficient cooling system, it is ideal for demanding RC models.

This controller is also equipped with thermal protection for its capacitors, which prevents damage from overloading. The built-in super-large capacitor offers an impressive 1640µF of capacitance and eliminates the need for external capacitors otherwise found on 1/10 scale models. The QuicRun WP 10BL120 G2 is suitable for use in all weather conditions and offers excellent waterproof and dustproof properties. Whether it's on mud, sand, ice, snow or water, this ESC ensures reliable and powerful performance without damaging the power supply. The QuicRun WP 10BL120 G2 is the ideal choice for RC enthusiasts who are looking for a powerful and reliable controller that knows how to impress in all situations.

Features

Now with even more performance than its predecessor
Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
The intelligent freewheel technology ensures that the ESC has a higher drive efficiency with a lower operating temperature at the same time.
Built-in powerful switch mode BEC, ideal for various powerful and high voltage steering servo.
Multiple protections: battery undervoltage protection, regulator overheat protection, throttle signal loss protection, current protection, capacitor overheat protection.
Finally also programmable with the LCD programming box and the OTA programming module with a smartphone.
10 programmable parameters
Technical Specifications

Type: 1/10 Brushless Sensorless
Current (cont./peak): 120A / 760A
Input Voltage: 2-4S LiPo
BEC: 6V/7.4V @5A (Switch Mode)
Motor Types: Brushless Motors (with/without sensor)
Motor Limits:
- With 3S Lipo: KV <= 4000 3660 size motor
- With 4S Lipo: KV <= 2600 4268 size motor
Fan: Yes, powered by BEC
Programming:
LED Program Card
LCD Program Box (G2)
Seperate Programming Port
Waterproof: Yes
Input: XT60
Output: 4.00mm Gold (female)
Dimensions: 52.8 x 39.8 x 38.2mm
Weight: 119g
Application: 1/10 Short Course, Monster Truck

Scope of Delivery:

Quicrun WP 10BL120 G2 ESC

Works with:

HW30501003 LED Program Card
HW30502001 LCD G2 Program Box
