Hobbywing Xerun Justock Combo G3S and 21.5 Turn

Hobbywing Xerun Justock Combo G3S and 21.5 Turn

Hobbywing Xerun Justock Combo G3S and 21.5 Turn
Hobbywing Xerun Justock Combo G3S and 21.5 Turn

Hinta
144,95 + toimituskulut
Sis. alv 25.5 %


Määrä
kpl


Liittimen vaihto - Jätä tyhjäksi ellet halua spesiaali liitintä

Ei varastossa. Toimitusaika arviolta 3 - 15 vrk.
Myymälä Vaasa0 kpl, vain nouto
Myymälä Vantaa0 kpl
Netistä toimitettavissa0 kpl

Tilauskoodi
HW38020373
Viivakoodi
6938994416832
Saatavuus
Arviolta 3 - 15 vrk tilauksesta. Jos tuote on loppu toimittajalta toimitusaika voi olla pidempi. Tarkemman toimitusajan voit varmistaa asiakaspalvelustamme. Normaalisti arvion luotettavuus on hyvä.

Varastotilanne ja saapuvat
Haluan ilmoituksen, kun tuotetta tulee lisää varastoon


Tuotteen kuvaus

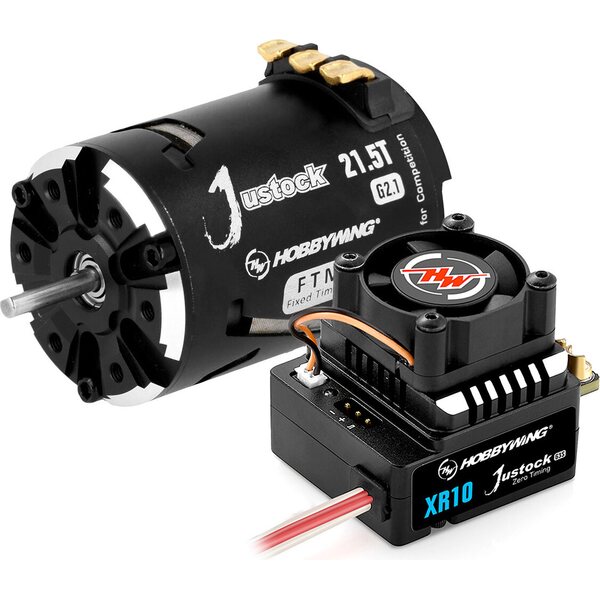

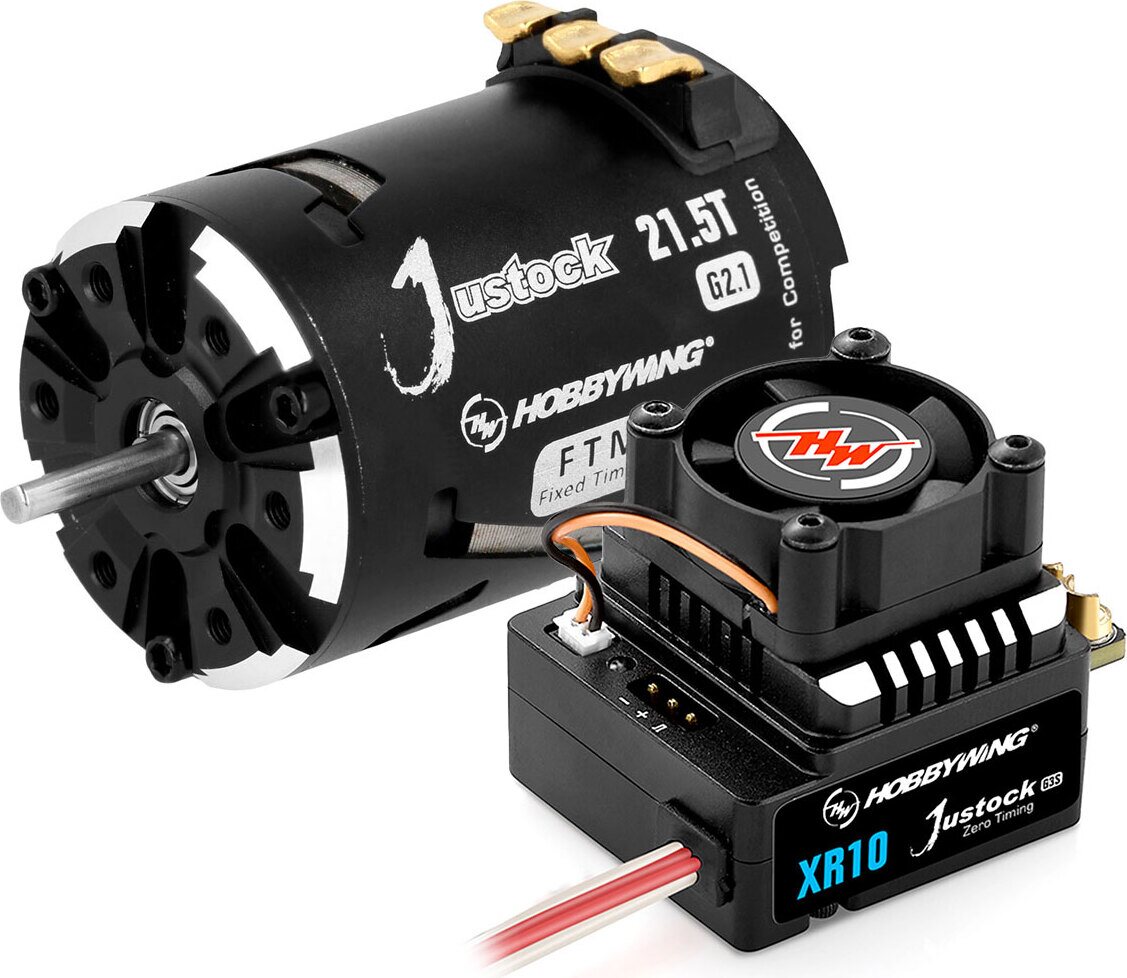

A combination of the JUSTOCK 3650SD G2.1 motor and the XR10 JUSTOCK G3S ESC, this combo is perfectly matched for the ambitious stock or races. The XR10 JUSTOCK G3S ESC was specially developed for races and training drives. The expanded "RPM Limit" programming option ensures that the limit can be adjusted depending on the racing requirements - up to 88000RPM as well as unlimited. In addition, there is the well-known fixed 0-Timing, which is often required in races. So get ready for a fair and successful race. Thanks to new programming options compared to its predecessor, it is now also possible to determine the direction of rotation of the motor as well as to set the BEC voltage to a certain value.

Features (ESC):


Even more available parameters than the normal Justock G3 controller (smart fan, freewheeling, initial throttle force)
Refined parameter options
RPM limit of 10000RPM up to 88000RPM in 1000 steps (instead of only 25000 or 33500)
Perfect for competition thanks to RPM limits and 0 timing
Direction of motor rotation free choosable (CW or CCW)
Adjustable BEC voltage (6V or 7,4V)
Robust aluminum housing for ideal heat dissipation
Built-in capacitors as a space-saving solution compared to external capacitors
Various protective functions against polarity reversal, overheating, Fail-safe and more
Firmware upgrades possible to always be up to date
Features (Motor):

Heat-resistant magnet and double insulated windings
Precision bearings
Cool look and good heat-dissipation
Linear and smooth control
Re-buildable design
Technical Specifications:

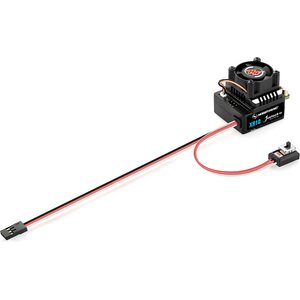

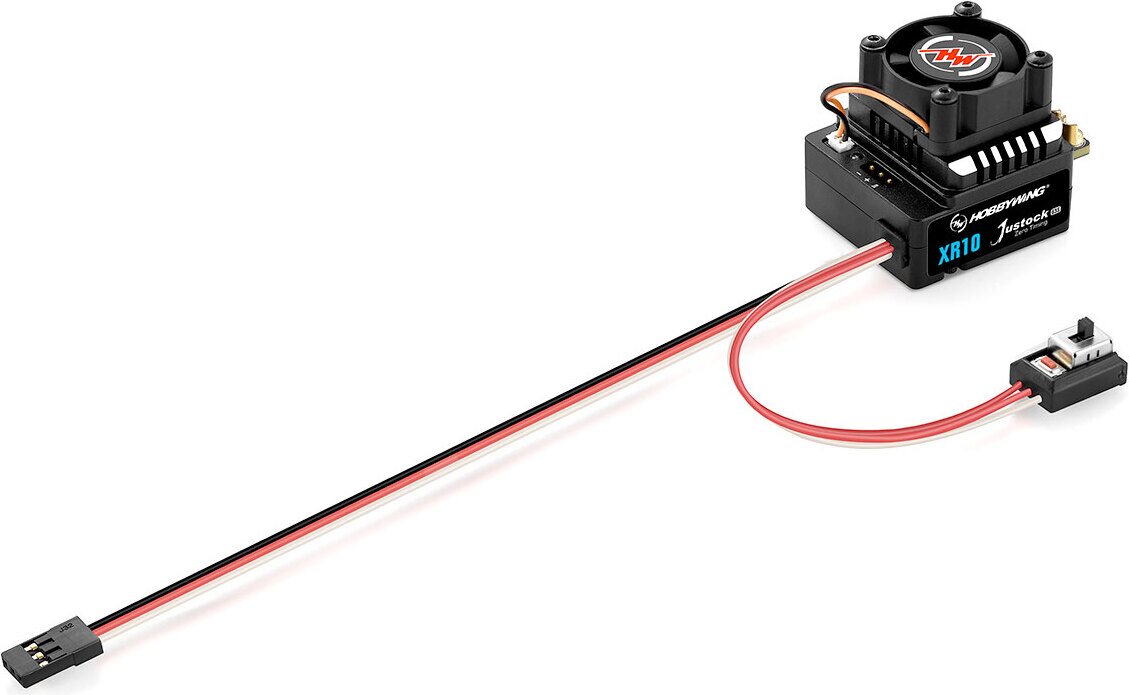

ESC
Type:
Brushless, Sensored
Power (cont./peak):
60A / 380A
Input Voltage:
2S LiPo
BEC:
6V / 7.4V bei 4A
Motor Types:
Brushless Motors (sensored / sensorless)
Motor Limit:
>=10.5T 3650 Motor
Fan:
Yes, Input via BEC
Programming:
LCD Programming Box G2, LCD Programming Box Pro,
OTA Module, separate Programming Port
Dimensions:
40.9x33.9x32.1mm
Weight:
75.4g
Application:
1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy)

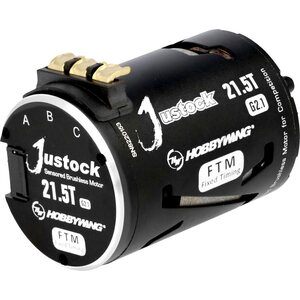

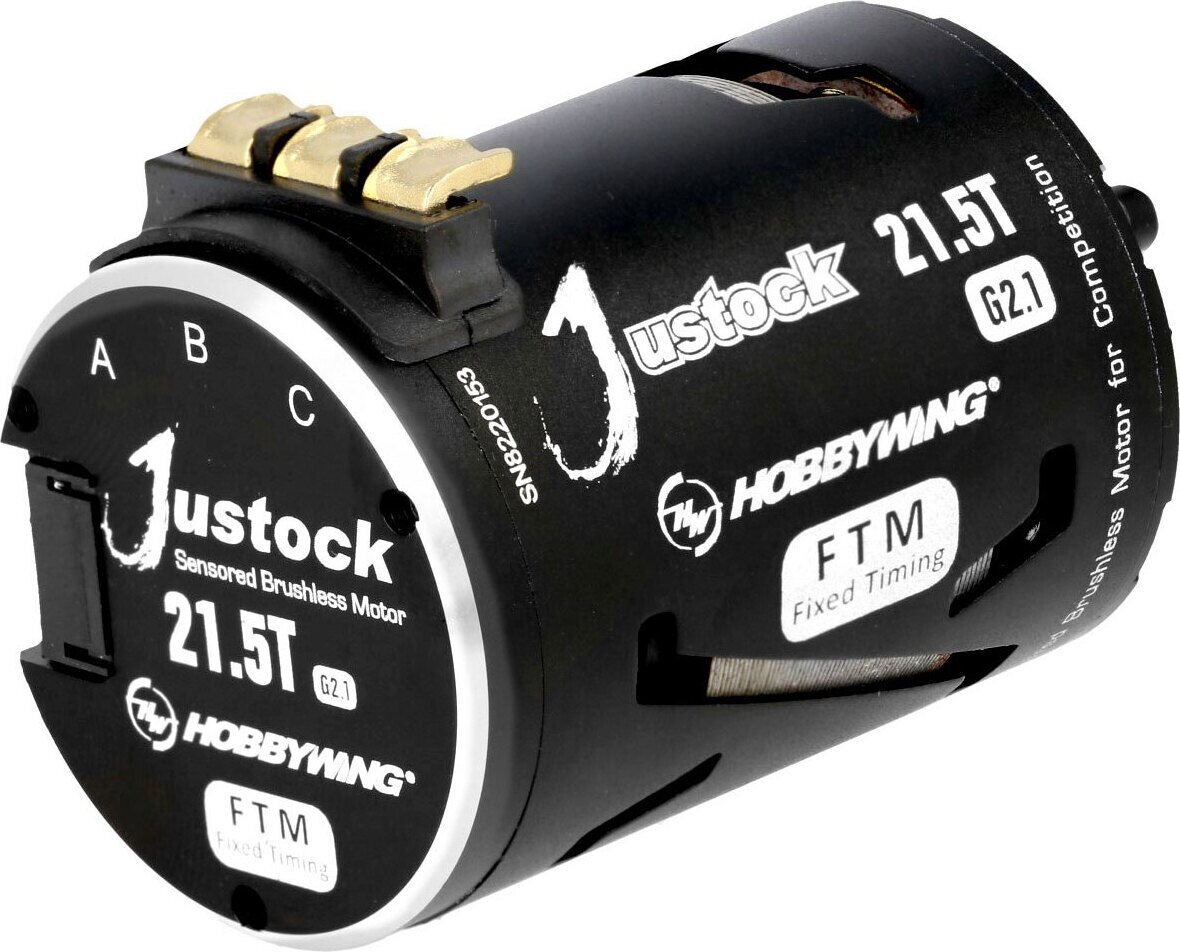

Motor
Type:
Brushless / Sensored
Poles:
2
kV Rating:
2050KV
Windings:
21.5T
LiPo Cells:
2-3s
No-Load Current:
3.0A
Outer Diameter:
35.9mm
Length:
52.5mm
Shaft Diameter:
3.17mm
Weight:
175g
Timing:
Fixed
Application:
1/10, 1/12 Crawler and F1 (Stock Class)
Delivery:

1x XR10 Justock G3S ESC
1x Justock 3650SD G2.1 Motor with 2050kV


Valmistusmaa
Kiina
