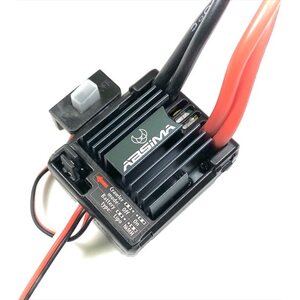

We proudly present our new programmable "ALL-IN-ONE" BRUSHED SPEED CONTROLLER which can be used for 1:10 RC Crawlers and also Race Cars. The basic setting for the vehicle and battery type is done via "jumpers" on the ESC. In addition, a programming card is available, which can be used for even more settings.
HIGHLIGHTS:
One ESC for all vehicle types (Crawler, Off-road, On-road, Boot)
Programmable via jumper and separately available programming card (Item: 2110061)
2-3S LiPo capable
Continuous load: 80A
BEC: 5A / 7.4V
Programmable Features (via programming card):
Initial Start Force: 5%* / 13% / 21% / 29%
Low V cut-off: 3.1V* / 3.4V / Off
Crawler Setup - Initial Drag Brake: 100%* / 90% / 80% / 70%
Standard Setup - Max Brake Force: 50%* / 100% / 75% / 25%
Max Reverse Force: 50%* / 75% / 100%
Start Mode (Punch): Medium* / Strong / Soft
Standard Features:
Waterproof and dustproof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion).
Specially designed for BRUSHED RC Cars and Crawlers for excellent acceleration and sensitive driving feel.
Low internal resistance and excellent heat dissipation.
Multiple protection functions such as low voltage cutoff for LiPo and NiMH batteries, ESC overheat protection and signal loss protection.
Leicht zu programmieren durch Jumper und Programmierkarte im Taschenformat (separat erhätlich - Art. 2110061)
Specification:
Continuous/short time load: 80A/320A
Resistance: 0.0014ohm
Motor type: Brushed standard motors
Battery: 2-3S LiPo / 5-9 cells NiMH
BEC 7.4V/5A
Motor Limit 2S LiPo/5-6 cells NiMH: ≥ 11T or <25,000rpm.
Motor Limit 3S LiPo/7-9 cells NiMH: ≥ 18T or <17,000U/min.

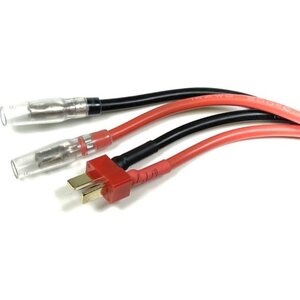

Cable lengths: BEC: 180mm / Motor: 200mm / Power: 200mm
Dimensions: 41.5*35*29.5mm
Weight: 63.4g
Scope of delivery:
1:10 Brushed Speed Controller V2
Adhesive Tape
Manual
Kiina
+
