New EVO Features and Functions
New* oversized 130 "Crawler Spec" brushed motor (100T)
New* developed 2-speed steel gear shift (switchable on radio CH3)
New extreme portal axles with steel gears for even more ground clearance
New* motor mount (even for bigger motors like 180 & 240 size)
New* reinforced drive shafts front & rear
New* LCG-optimized chassis layout (Low Center of Gravity)
and also...
2.4GHz radio system
Vehicle lighting operated from the transmitter (CH4)
Oversize 1.2" AT wheels with internal beadlock system
1kg steering servo with panhard bar
PPX4 water-resistant electronics
Metal chassis frame
Painted 1.2mm Lexan body
Tight turning circle of 80cm
Driving time of up to 45 minutes
Steering angle of up to 45°
Maximum ground clearance thanks to portal axels and 1.2" wheels

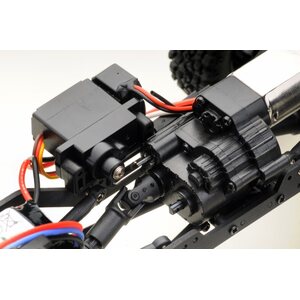

Newly developed 2-speed high-performance gearbox - 1st gear ratio: 98:1 / 2nd gear ratio: 24.5:1 switchable via CH3 on the remote control. Gears made of tool steel is also used here.
The motor mount is compatible with brushed and brushless motors up to a size of 240
Specs:
Speed controller: 2-in-1 ESC/RX unit, PPX4, 10A/50A
Remote control: 2.4GHz, 4-channel
Steering servo: 1kg actuating force, waterproof
Motor: 100T - 130 oversize
Newly developed 2-speed gears
Steel drive and portal axle gears
Gear ratio: 1st gear: 98:1 / 2nd gear: 24.5:1
Battery: LiPo 7.4V/2S 600mAh
Battery connector system: Molex 2-pin
Wheelbase: 160mm
Ground clearance: 37mm
Track width: 110mm
Length: 284mm
Width: 125mm
Height: 130mm
Weight: 480g (incl. drive battery)
Wheels: 19.5x58mm
What's in the Box?
1* Mini EVO Crawler
1* 2.4GHz radio system
1* LiPo battery 7.4V 600mAh
1* USB charging cable
1* Sticker sheet
1* Manual DE/EN/FR
1* Mini tool set
