Tuotteen kuvausAbsima CR3.4eco on Huippususoitun Sherpan pelkistetty versio. Tässä löytyy kaikki Sherpan hyvät perusominaisuudet mutta hintaa on saatu alas jättämällä pois "ylimääräisiä" hienouksia.
Varmasti paras tapa aloittaa Crawling harrastus alle 300€ budjetilla.
Tämä on ajovalmis paketti, tarvitset vain akun ja laturin, sekä ohjaimen 4x AA paristoa lisäksi.

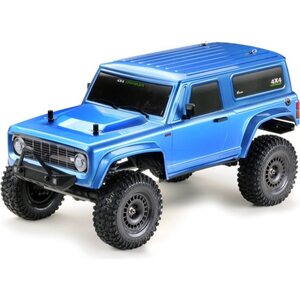

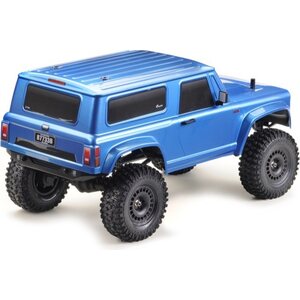

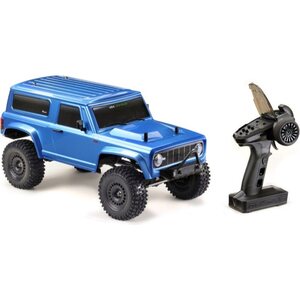

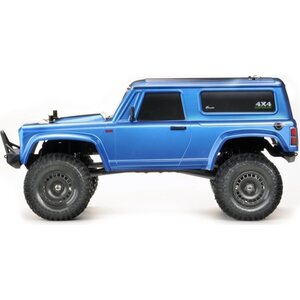

The CR3.4eco Crawler in Bronco style is of interest to all those who love purist crawling or want to get started in this fascinating hobby on a small budget.

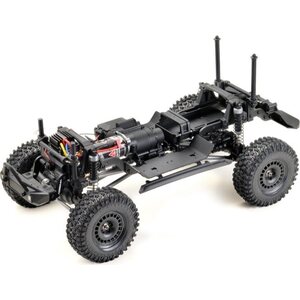

This vehicle is a "downgrade" of our original chassis "CR3.4 RTR" which is among the best on the market and this since 2020 already!
The quality of the installed parts is of course the same as its fully equipped brothers. The mounting points for special equipment such as the differential locks or 2-speed gearbox would theoretically also be available.

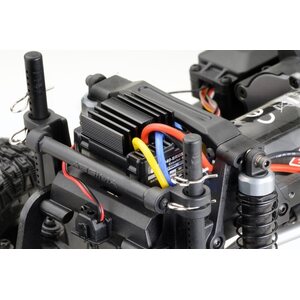

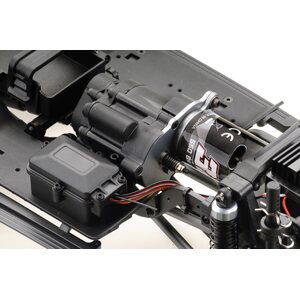

The vehicle comes as standard with a 550 32T Brushed High Torque motor and a HobbyWing 40A speed controller. You can use jumpers on the speed control to determine whether the vehicle be powered by a 7.2V NiMH battery or a 2S or 3S (low profile) LiPo battery!

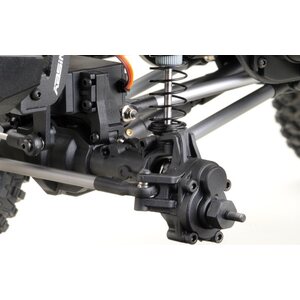

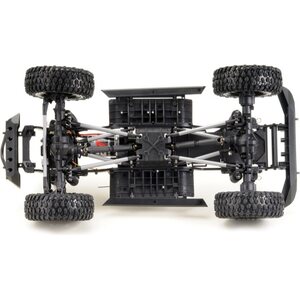

Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the Gear ratio at the wheels and virtually eliminates torque shocks from the drive. The overall reduction ratio of the axle drive is more than double that of non-portal versions to ensure smooth running.

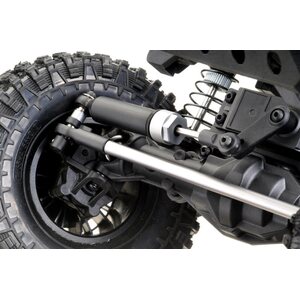

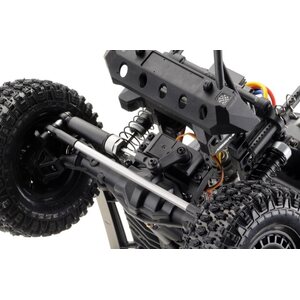

The steering shock absorber absorbs most hard impacts so that the 9kg MG steering servo and the servo arm are spared. Hardened steel drive shafts and a steering angle of 45.8° offer the best possibilities for any terrain. Added to this are the 2.2" tires, which not only look stylish, but also offer extremely good grip thanks to the super-soft tires.
Our 4-channel, 2.4 GHz CR4S-V2 radio control system completes the package.
2.4GHz 4-channel remote control CR4S-V2
9kg steering servo with metal gears
40A Hobbywing speed controller (3S LiPo capable) with T-connector
32T 550 brushed motor
Portal axles

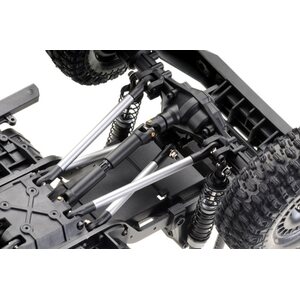

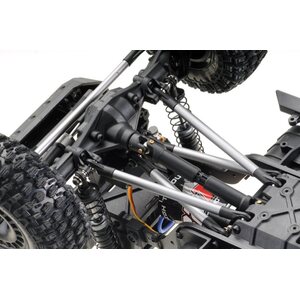

Aluminium 4-link suspension
Steel drive shafts front and rear
Heavy duty cardan shafts front and rear
Steering angle max: 45.8°
Rims: 2.2" with 12mm hexagon mount
Tyres: Supersoft 40x115mm

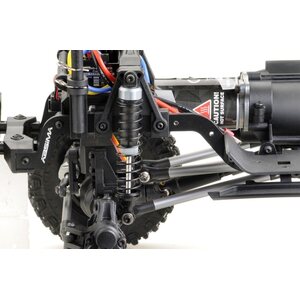

Shock absorber length: 90mm
Viscosity of damper oil: 500cps
Gearbox: Module 0.8/32dp; pinion18T / main gear44T
Approach angle: 60°
Departure angle: 45°
Length: 542mm
Width: 250mm
Height: 240mm
Ground clearance: 53mm
Wheelbase: 313mm
Weight: 2390g
CR3.4eco Crawler inklusive Fernsteuerung
Bedienungsanleitung
Stickerbogen
7.2V NiMH battery, 2S/7.4V LiPo battery or 3S/11.1V LiPo battery
Charger suitable for the battery type
4 AA Mignon batteries or TX LiPo battery for the remote control
Ostamalla tämän tuotepaketin säästät 24,79 € verrattuna siihen, jos ostaisit tuotteet yksitellen.
