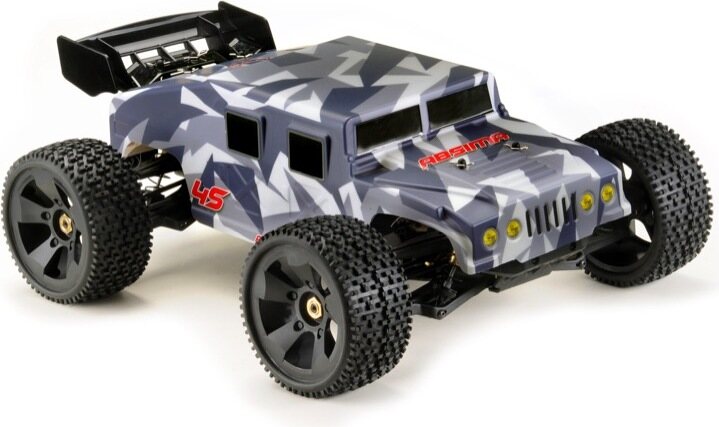

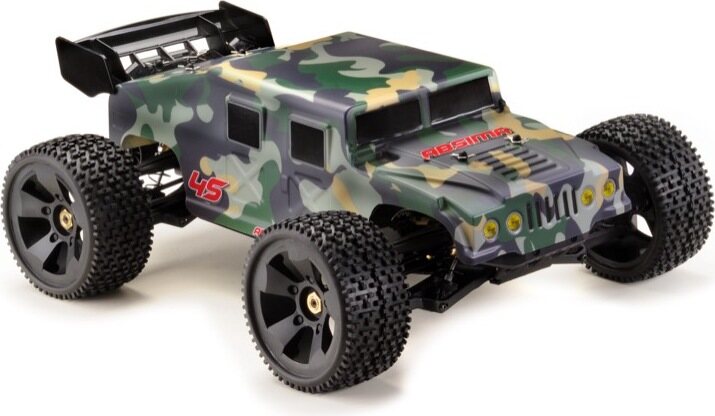

Absima 1:8 Stunt Truck Guardian white 4S RTR

Do you want a vehicle with an extraordinary look and the agile handling of a buggy? Then our new stunt truck could be something for you! With its short but very wide wheelbase, it's simply great fun to bash. The wheelie bar is there for a reason. If you ever push the limits, you'll be glad that you have it. This fun machine fulfils all your wishes.



Do you want to get the most out of your vehicle or give a beginner their first driving experience? No problem! Thanks to the new programmable* speed controller (*programming box optionally available), you can set the punch or braking force, among other things, just as you need it. You can also regulate the maximum speed on the remote control and there is a "beginner mode" available which, thanks to simple programming, only delivers 50% power to the vehicle. This means that even the youngsters can make their first attempts at racing.


The driving concept is leading in its class in terms of performance and reliability and accelerates the vehicle up to 70 km/h (4S LiPo operation). The speed controller's cooling fan keeps the temperature constant while driving. The 4274 brushless motor delivers plenty of power to the wheels. XT90 connectors ensure a reliable connection between the speed control and your chosen LiPo batteries. We recommend using quality batteries with a high capacity and a C-rate of at least 50C in order to utilise the full potential.


Many drive parts such as CVD shafts, differential gears and dogbones are made of steel. The "easy-to-use" motor mounting concept with just 2 screws ensures quick and easy removal of the motor.


Our tried-and-tested Absima "CR4S-V2" remote control system guarantees a fast and reliable connection to your vehicle. The 15 kg steering servo with metal gearbox and aluminium servo horn ensures powerful steering movements on any surface.



Adjustable "Big Bore" aluminium shock absorbers ensure great handling. There is also a wheelie bar under the adjustable rear spoiler.





Extremely durable composite plastic parts

Adjustable 16mm "Big Bore" aluminium shock absorbers

Differentials with full metal gears

Downforce race spoiler

Adjustable spoiler mount

Wheelie bar

Easy-to-use" engine mounting concept

Solid CVD shafts front & rear

Steel centre drive shafts

High Grip Racing wheel replacement

"Saddle Pack" battery layout for perfect weight distribution

3mm aluminium chassis plate with ABSIMA laser engraving

15kg steering servo with metal gearbox and aluminium servo horn

Water and dustproof receiver box

Fully ball-bearing mounted

Chassis side moulding protection

Aluminium parts finished in gold look

2.4GHz "CR4S-V2" 4-channel remote control system (reverse and dual rate function; foam rubber steering wheel)
120A speed controller (BEC 6V/3A; programmable optional with programming box)
4274 brushless motor with 2000KV (5mm shaft; module 1)
15kg steering servo with metal gears (25T)
Scale: 1:8
Drive type: 4WD all-wheel drive
Wheelbase: 345mm
Ground clearance: 50mm
Wheels: Ø 145mm / width 70mm
Gear ratio: pinion 12T / main gear 49T
Pinion module: 1.0
Dimensions (L/W/H): 570*450*210mm
Weight (without batteries): 4130g

Guardian stunt truck including remote control

instruction manual

Sticker sheet

2 pieces 7.4V/2S LiPo batteries with XT90 connector (50C+)

Suitable LiPo charger

Optional programming box

4 AA batteries or TX LiPo battery for the remote control
You can find a selection of suitable parts on this page under "Spare parts and accessories"
