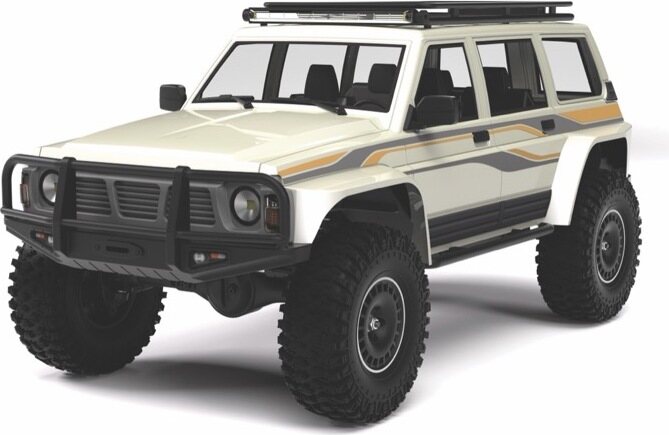

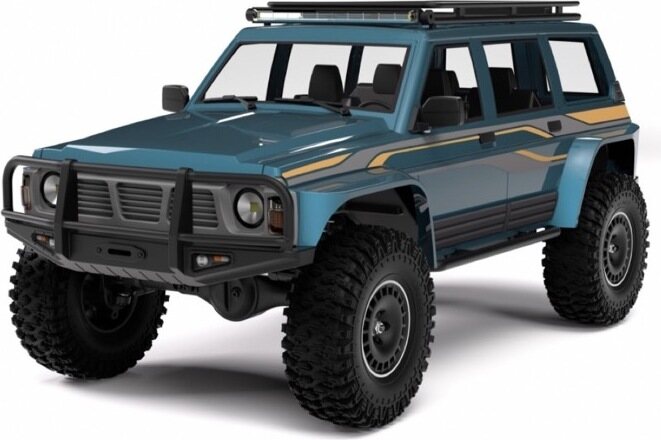

Absima CR4.4 Patrol 1:10 Crawler

TOP FEATURES:

NEW! Newly developed "Low Center of Gravity" chassis
NEW! Innovative "Trail Turn" function
NEW! "Low Center of Gravity" gear box
NEW! Revised servo protection function with a steering damper
NEW! 10-channel remote control and 2-in-1 receiver/light unit
NEW! Separate waterproof Hobbywing speed controller

The completely redesigned tub-like chassis offers many advantages! All electronic components are freely accessible, which is essential with so much technology installed! Thanks to the extremely flat “LCG” chassis and the matching gearbox, the center of gravity is shifted downwards, which is particularly helpful with high body concepts. The battery box is centered and can be perfectly adapted to all 2-3S Lipo and 6-7 cell NiMH batteries thanks to the Velcro fastener and adjustable holder. The 10-channel remote control is necessary to control all the technical features. The 2-in-1 receiver/light unit and the speed controller are kept separate to keep all options open for future optimizations/tuning measures.

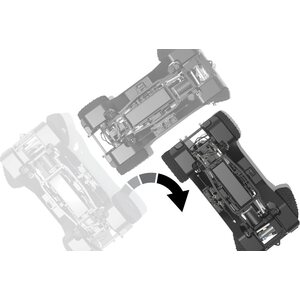

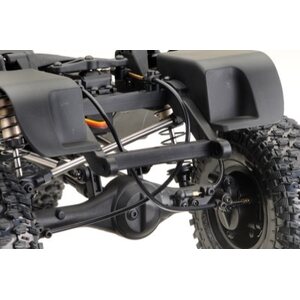

"TRAIL TURN" FEATURE

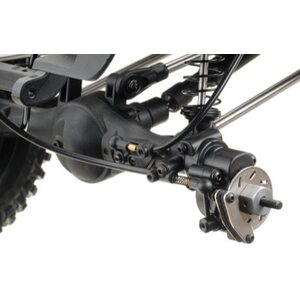

Innovative TRAIL TURN function (patent) that locks a single wheel on the rear axle, thus enabling a tighter turning circle. Pressing the CH4 button automatically unlocks the rear differential and the “Trail Turn” servo at the rear of the vehicle now reacts to the steering movement and locks the inner rear wheel using the built-in brake discs.

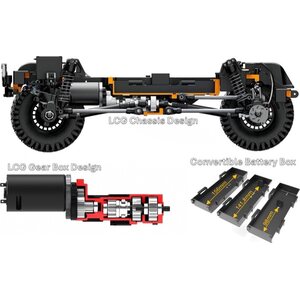

"LCG" CHASSIS FEATURES

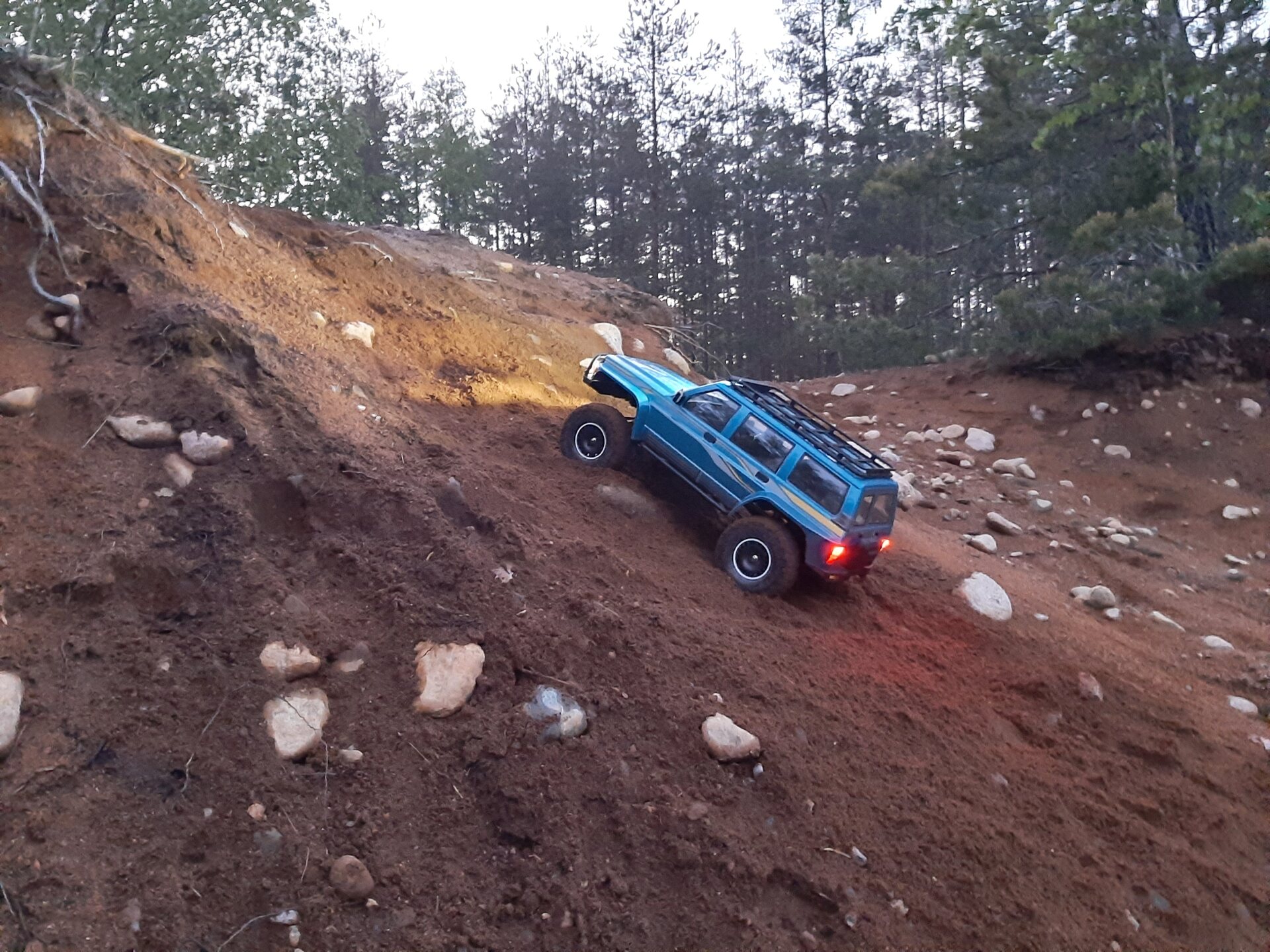

LCG chassis and gearbox design for maximum traction on any incline and extreme lean angles.
Adaptable battery box design

CHASSIS & BODY FEATURES

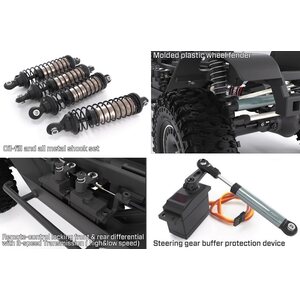

Adjustable aluminum oil-filled shock absorbers
Lockable differentials front & rear (independently adjustable via transmitter)
2-speed transmission (switchable via transmitter)
Steering shock absorber system as servo protection function

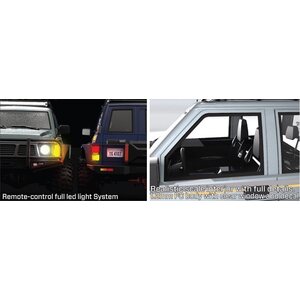

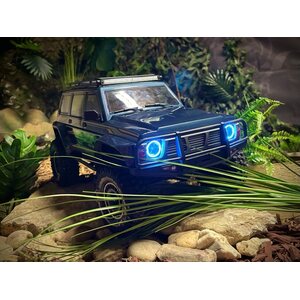

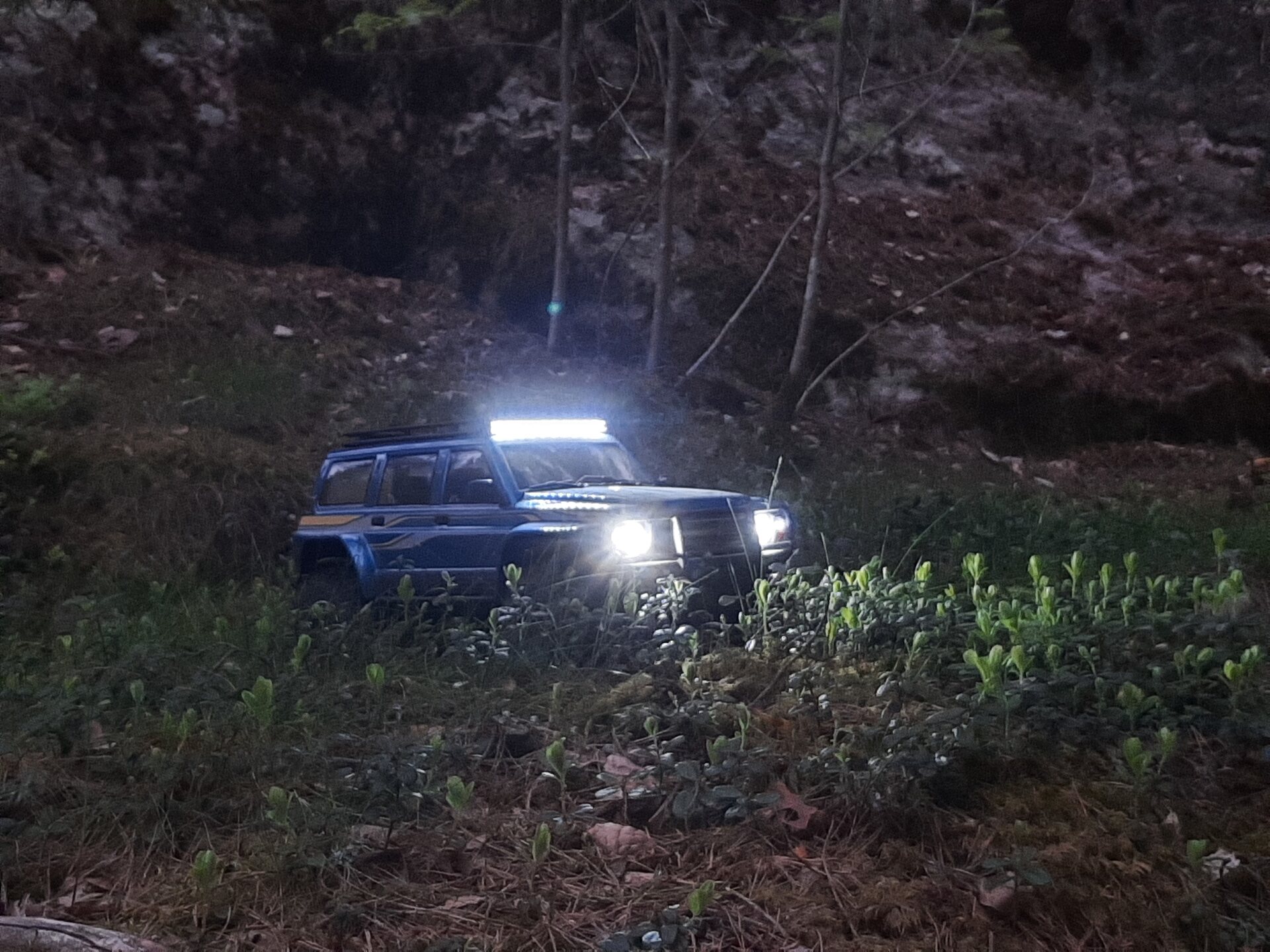

Fully functional LED vehicle lighting (switchable via transmitter)
Realistically designed interior with many details
1.2mm PC body with many add-on parts, clear windows

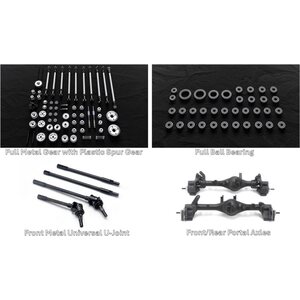

DRIVE SYSTEM

All steel gear train, plastic spur gear
Full ball bearings
Steel U-joints on front axle
Portal axles on front and rear
Ultra-grippy 2.2” Competition tires
Standard gearing 14T-M0.6 (Standard): 70.3@low speed / 30.2@high speed
Further gear reduction (optional): 12T = 81.9@LS & 35.2HS / 13T = 75.7@LS & 32.5@HS / 15T = 65.6@LS & 28.2@HS

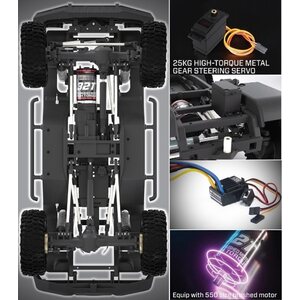

ELECTRONIC COMPONENTS

25kg "High-Torque" digital steering servo with metal gear (25T)
550 32T brushed motor with 14T M0.6 pinion
WP-1060 Hobbywing ESC (waterproof; 2-3S LiPo-suitable; 6V/3A; 60/80A)
25kg "Trail Turn" digital servo with metal gear (25T)
3* mini servos 17g/0.9kg for 2-speed transmission and diff locks

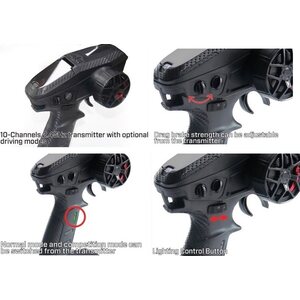

RADIO SYSTEM

2.4GHz 10-channel remote control (operates with 2S TX LiPo or 4* AA Mignon)
10-channel receiver unit with separate light unit
Motor brake adjustable via transmitter (CH5)
2-speed transmission switchable via transmitter (CH8)
Differential locks switchable via transmitter (CH3&CH4)
Lighting system controllable via transmitter (CH7)

TECH SPECS


Wheelbase: 325mm
Track width: 267mm
Approach angle: 58°
Departure angle: 52°
Steering angle: 40°
Ground clearance: 65mm
Wheel diameter/width: 116/42mm
Dimensions (L/W/H): 521x247x267mm
Weight (without battery): 3100g

SCOPE OF DELIVERY:

1:10 PATROL Crawler
2.4GHz remote cotrol
Sticker sheet
Manual


REQUIRED ACCESSORIES:

2/3S LiPo or 7.2V/8.4V NiMH race pack
Suitable charger for the car battery
4* AA mignon or 2S TX LiPo batteries for the remote control
